Automatic Wheel-Track Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Wheel Tracking Device：Wheel Tracking Device for Asphalt
  • Asphalt Mixture：Asphalt Mixture Wheel Rut Test Machine
  • Wheel Rutting Machine：Automatic Wheel Tracking Tester
  • Wheel Track Test Apparatus：Automatic Asphalt Wheel Track Tester
  • Wheel Rutting Tester：Wheel Rutting Resistance Tester (Wheel
  • Wheel Tracking Machine：Wheel Rutting Resistance Tester

Base Info

  • Model NO.：GD-0719A
  • Rutting Tester：Bitumen Automatic Wheel Tracking Device
  • Transport Package：Wooden Case
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

Basic Info.

Model NO. GD-0719A Rutting Tester Bitumen Automatic Wheel Tracking Device Transport Package Wooden Case Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 200PCS/Month

Product Description

Automatic Wheel-Track Tester



Introduction:
This Automatic Wheel-Track Tester is based on the company's first-generation products that have been well received and upgraded to improve the next-generation products. At least 20 details have been improved in hardware, software and mechanical structure. Not only is the functionality and data processing capabilities significantly improved, but the reliability of the machine is further enhanced. It not only supports the original 0.7MPa standard road wheel tracking test, but also can complete the 1.4MPa heavy-duty traffic road wheel tracking test by adding optional accessories. At the same time, it can also complete some non-standard tests, and the adaptation range is greatly improved. Applicable standards: JTGE20-2011/T0719-2011. This series of products can be ordered by means of 2 or 3 wheels to suit the different requirements of users.



Main Technical Parameters::

Electrical parameters:

  1. Power input: host: three-phase four-wire 380V ± 10%
  2. Heater power: △ connection method, 1KW*3
  3. Motor power: three-phase three-wire 750W
  4. Maximum total power: no more than 4.5KW

Technical Parameters:
  1. Temperature resolution: 0.1ºC
  2. Temperature measurement accuracy: initial accuracy ±0.5ºC(±0.1ºC after fixed point correction)
  3. Temperature control accuracy (relative to temperature measurement point):
           Cabinet temperature: ±0.2ºC after 45 minutes and ±0.1ºC after 60 minutes
           Sink temperature: ±0.5ºC after 30 minutes and ±0.2ºC after 60 minutes
  1. Temperature difference between different positions of the cabinet: after 60 minutes, the maximum temperature difference is 0.5ºC
  2. Displacement measurement accuracy: 0.01mm
  3. Displacement measurement resolution: 0.001mm
  4. Round grinding speed: 21 round trips / min
  5. Wheel surface hardness: 78±2 (60ºC)
  6. Wheel rolling load: 0.7MPa±0.05MPa (factory adjustment)
  7. Additional load: 0.7MPa (heavy load test)
  8. Net weight: single wheel: 370Kg; double wheel: 500Kg; three wheels: 580Kg

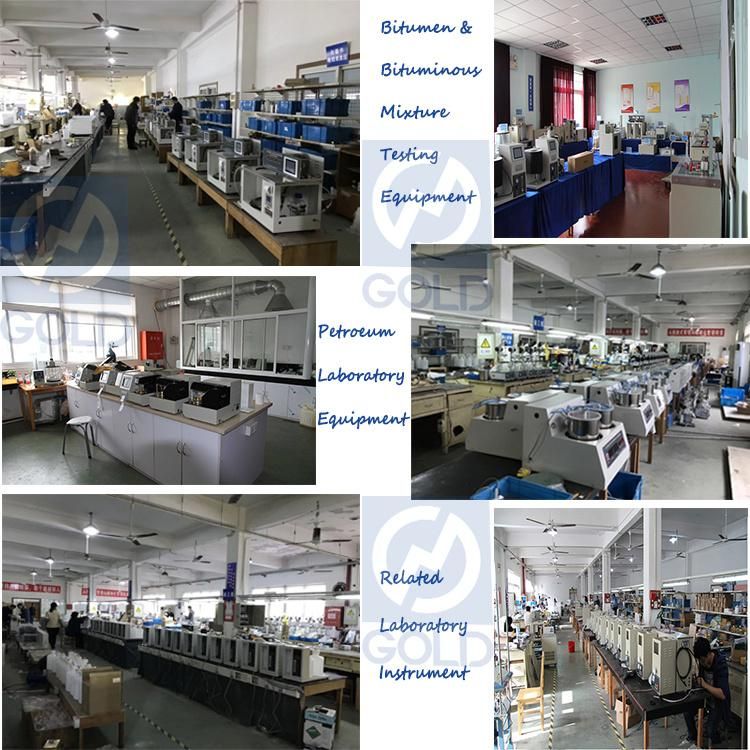

Factory Show:

Automatic Wheel-Track Tester
