Trisun Automobile Compressor Test Equipment
Shanghai Trisun Parts Manufacture Co., Ltd.- Max Diameter of Workpiece：1000mm
- Mass Scope of Workpiece：1000kg
- Type：Balancing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：T95-8121
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Transport Package：Wooden Box
- Specification：standard size
- Trademark：Trisun
- Origin：China
- HS Code：84842000
- Production Capacity：1000
Description
Basic Info.
Model NO. T95-8121 Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Box Specification standard size Trademark Trisun Origin China HS Code 84842000 Production Capacity 1000Product Description

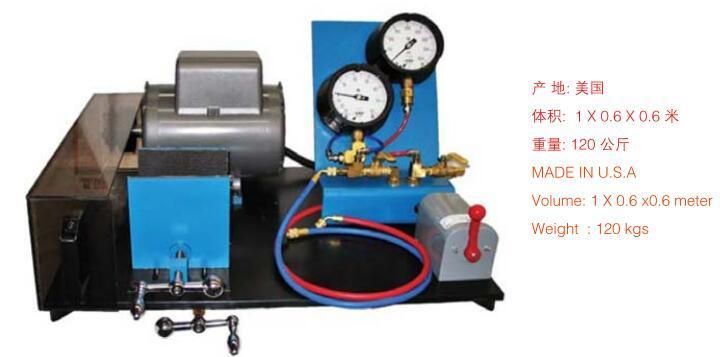

The T95-8121 is a economical full function test machine suitable to all fixed displacement and 90% variable compressors.
(Some variable compressors cannot be started with low side pressure induction).

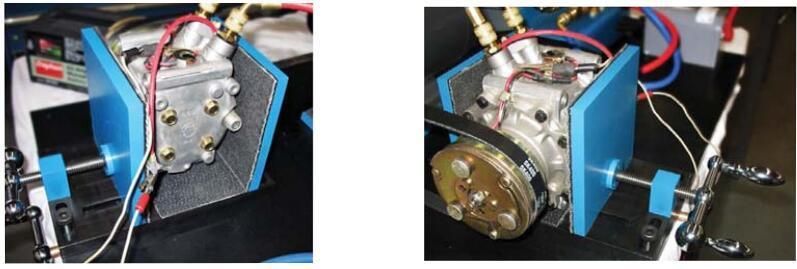

Test with clutch mounted, using universal compressor fixture.Holds up to 7 inch wide compressors (TM-31)
Application :
1. External and internal leakage test
2. Suction and discharge reed test
3. Full function test
Safety Guarantee :
1. Total Operator Safety Focus. (OSHA, ANSI)
2. Explosion Proof Gauges.
3. High Pressure Relief preset at 350PSI 24 bar.
4. All Heavy Duty Industrial Grade Components
