• Model NO.：HD-E808
• Power Source：AC220V
• Certificate：ISO9001: 2008,Ce
• Warranty Period：12 Months
• Delivery Time：10 Days After Receive The Payment
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Power：1AC220V
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Color：White
• Transport Package：Strong Wooden Case
• Specification：Cns: 3627, 3385, 4159; JIS: D0201, H8502, ASTM8117
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

ModelHD-E808-60A-1HD-E808-90A-1HD-E808-120A-1
Inner box size:
(L×W×H) cm
60×40×45
90×60×50
120×100×50
Outside box size:
(L×W×H)cm
107×60×118
141×88×128
190×130×140
Equipment material:
Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.
Temperature range:
35°C~55°C
Temperature fluctuations:
≤±0.5°C
Temperature uniformity:
≤±2°C
Temperature precision:
±1°C
Test chamber temperature
NSS ACSS 35±1°C CASS:50±1°C
Saturated air barrel temperature:
NSS ACSS 47±1°C CASS 63±1°C
Brine temperature:
35°C±1°C
Spray quantity:
1.0~2.0 ml / 80cm2 / hr
PH:
NSS ACSS6.5~7.2     CASS 3.0~3.2
Lab volume:
108L
270L
600L
Brine tank capacity:
15L
25L
40L
Power:
1AC220V,10A
1AC220V,15A
AC 1,220V,30A
Multiple safety protection devices:
Water shortage/ over temperature / phase protection
Standard accessories:
Test salt, measure bucket, tool etc 1 set
Purpose:

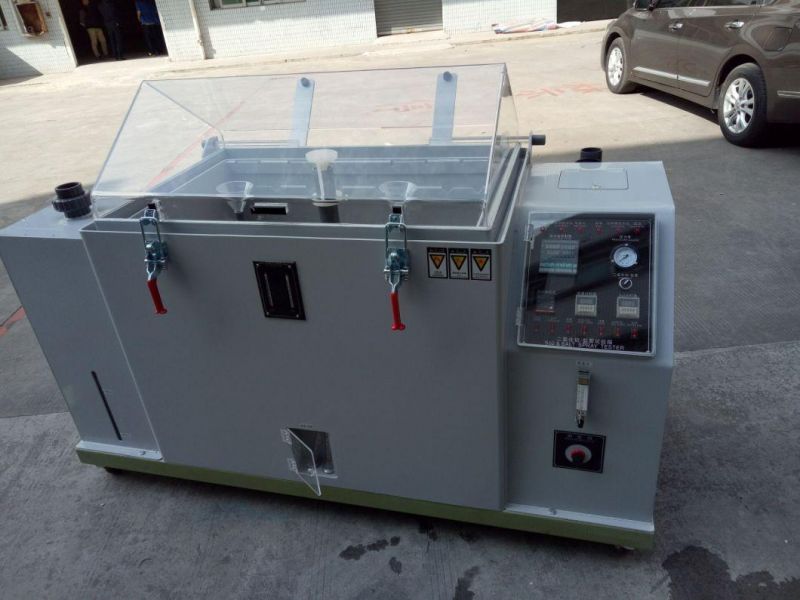

Programmable Salt Spray chamber is applicable for the salt spray corrosive test for the protection layer of components,parts, electronic and electrical parts and metal materials and industrial products. Salt Spray Test Instrument

Control System:
High precision P.I.D.temperature control meter with its error ±0.1°C.

Features:
 1  Durable hard PVC construction, anti-corrosion, easy to clean.
 2  Reservoirs with mixing system on stand.
 3  Cabinet heated by water jacket, heating element from USA famous company.
 4  Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
 5  Exposure zone lined with corrosion-resistant PVC sheets.
 6  Clear cover allows viewing of test conditions.
 7  Peaked cover prevents dripping of condensation onto samples.
 8  Water seal and water level protection system.
 9  Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10  Automatic DI water fill to humidifying tower.
11   Digital temperature control and readouts.
12   Integral over-protection on all heaters.
13   Low water cut-off protection on humidifying tower.
