Solar Panel UV Preconditioning Test Environment Chamber Testing Machine with IEC61215-2: 2016

Dongguan Hong Tu Instrument Co., Ltd.
  • Certification：CNAS
  • Warranty：2 Years
  • Product Name：Solar Panel UV Preconditioning Test Environment CH
  • Testing Standard：IEC61215-2:2016 Testing Standard
  • Irradiation Area：2000mm*2000mm
  • Testing Sample Quantity：2 PCS

Base Info

  • Model NO.：HTPV-15
  • Lamp Source Brand：Germany Honle
  • Lamp Life：About 2000hours
  • Irradiance Uniformity：Be Better Than 15%
  • UVA Wavelength：320nm~400nm
  • UVB Wavelength：280~320nm
  • Module Surface Temperature：60ºC±5ºC
  • Electricity：380V 60Hz
  • Transport Package：Export Wooden Case
  • Specification：Conform IEC61215-2: 2016
  • Trademark：HOTOTECH
  • Origin：China
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

The chamber materialCompletely obstruct ultraviolet rays,tightness,good thermal insulation's high quality materialsMachine UV total irradiation areamore than 2000mm×2000mm,meanwhile satisfy 2 pcs module (Horizontal type placed)  Light source lifeapprox 2000 hours , the lamp amount 6pcs, the brand is Honle(Germany import)Single lamp UVA and UVA relative energy rateUVB approx occupy total energy 3%~10%Irradiation strengthwavelength 280nm~400nm's irradiation strength can reach about 100W/m²,280nm~320nm <=10%,promise the test cycle reduce as far as possibleIrradiance uniformitybe better than ±15%Data displayReal-time monitor and show UVA and UVB strengthUVA wavelength320nm~400nmUVB wavelength 280~320nmModule surface temperature60ºC±5ºCTemperature resolution0.1ºCOzonealmost no ozone is producedLight waysupper light, module test plane vertical light sourceControl ways Touch screen control Electricity 380V 60HZ

Testing Procedure
1,Using the calibrated radiameter measure the irradiance at the proposed module test plane and ensure that at wavelength between 280nm and 400nm it does not exceed 250W/M2 (i.e. about five times the natural sunlight level) and that it has a uniformity of ±15% over the test plane

2,Short-circuit or attach the resistive load to the module and mount it in the test plane at the location selected , normal to the UV irradiance beam. Make sure that the module temperature sensors read 65±5ºC

3,Subject the modules front side to a total UV irradiation of at least 15 KW/m2 in the wavelength range between 280nm and 400nm with at least 3%, but not more than 10% in the wavelength band between 280nm and 320nm , while maintaining the module temperature within the prescribed range

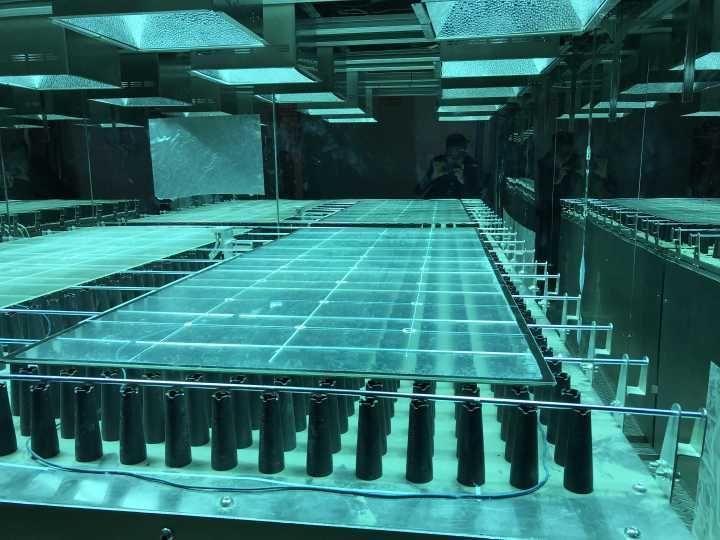

Testing chamber's images display
