• Model NO.：GDVA-405
• Packing Size：70*50*41cm3
• Groos Weight：40kg
• Warranty：1 Year
• Display：LCD Screen
• Transport Package：Plyood Case
• Specification：Refer to specifications
• Trademark：Gold
• Origin：China
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GDVA-405 Packing Size 70*50*41cm3 Groos Weight 40kg Warranty 1 Year Display LCD Screen Transport Package Plyood Case Specification Refer to specifications Trademark Gold Origin China HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

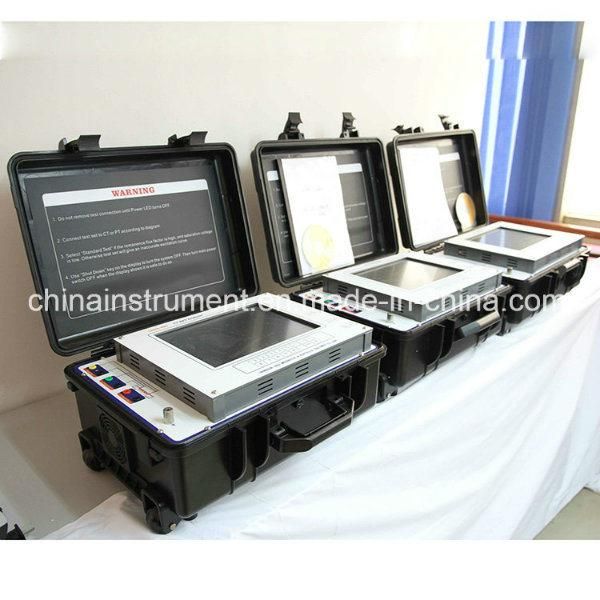

 GDVA-405 Current Transformer Test Set


Tests for Current Transformer:	Tests for Potencial Transformer:
1 Excitation curve and parameters test 2 Turns ratio test 3 Ratio and phase error test 4 Polarity mark check 5 Winding resistance measurement 6 Secondary loop burden measurement 7 Error line curve test for protection CT 8 Transient CT parameters test 9 CT nameplate guess 10 Saturation hysteresis loop curve measurement	1 Turns ratio test 2 Ratio error and phase angle error test 3 Polarity test 4 Secondary burden test 5 Winding resistance test

Applications of Current Transformer Test Set :
1 CT nameplate check
2 CT parameters check in work burden
3 CT transient parameters analysis
4 CT ratio and phase error calibration
5 PT routine test


Specifications:

1	Test standards	IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13
2	Power supply	AC220V±10%,50Hz/60Hz±10%
3	Power output	0.1~180V (AC)
4	Current output	0.001~5A(RMS)
5	Power output	300VA
6	Max. knee voltage measurement	45kv
7	Current measurement range	0~10A (automatically change range in 0.1/0.4/2/10A)
8	Current measurement error	<±0.1%+0.01%FS
9	Voltage measurement range	0~200 V (automatically change range in 1V/10V/70V/200V)
10	Voltage measurement error	< ±0.1%+0.01%FS
11	Turns ratio measurement range	1~35000; 1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2%
12	Phase measurement	error:±2min,resolution:0.01min
13	Coil resistance measurement	Range: 0~8kΩ(automatically change range in 2ohm /20ohm /80ohm/800ohm/8kohm) Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ
14	Temperature measurement	-50~100 Celsius degree, error<3 Celsius degree
15	CT Secondary burden	Range 0-160ohm (automatically change range in 2ohm/ 20ohm/80ohm/160ohm) Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm
16	PT Secondary burden	Range 0-80kohm (automatically change range in 800ohm / 8kohm /80kohm) Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm
17	PT ratio measurement	Range: 1~35000, 1~5000 error<0.2% 5000~35000 error<0.5%
18	Saved data groups	>1000groups
19	Work condition	Temperature:-10ºC-50ºC, moist:≤90%
20	Size	485mm×356mm×183mm
21	Weight	<15Kg
