IEC60156 80kv Insulating Oil Dielectric Strength Tester Oil Bdv Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Output Voltage：AC 0V~100kv
  • Storage：100 Groups
  • Relative Humidity：<80%
  • Product Name：Insulating Oil Breakdown Voltage Bdv Tester
  • Max. Test Times：9
  • Stir Time：0~999s

Base Info

  • Model NO.：GDYJ-502A
  • Wait Time：0~999s
  • Measurement Accuracy：±(1% of Full Scale + 2 Digits)
  • Resolution：0.1kv
  • Temperature Resolution：1°c, or Better
  • Transport Package：Gdyj-502A
  • Specification：Breakdown Voltage Tester
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：50 Sets, Month

Description

1Output voltageAC 0V~80KV2Rate of voltage rise0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%3Max. test times94Stir time0~999s5Wait time0~999s6Measurement accuracy±(1% of full scale + 2 digits)7Resolution0.1KV8Temperature measurement range0°C to 70°C, or better9Temperature resolution1°C, or better10Data storage100 groups11Power supplyAC220V, 50Hz12Working environmentRoom temperature to 45°C, humidity<85%

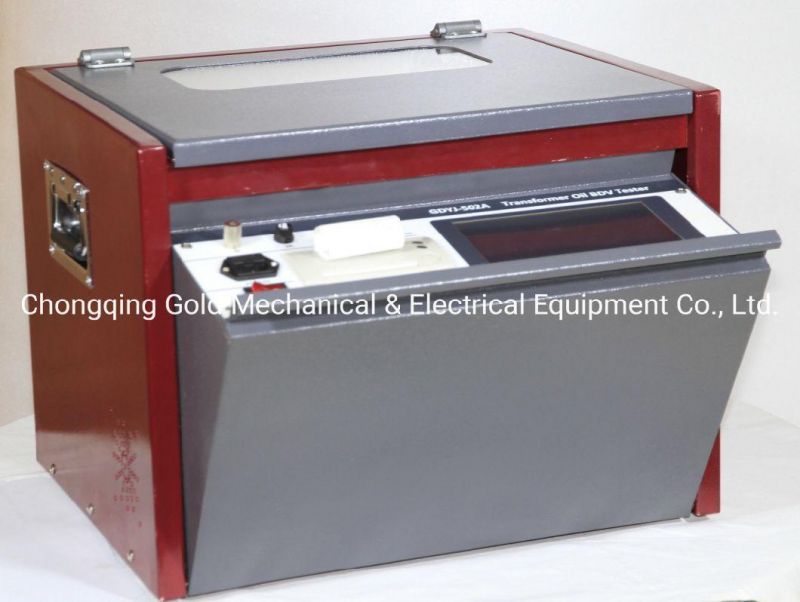

IEC60156 80kv Insulating Oil Dielectric Strength Tester Oil Bdv Tester

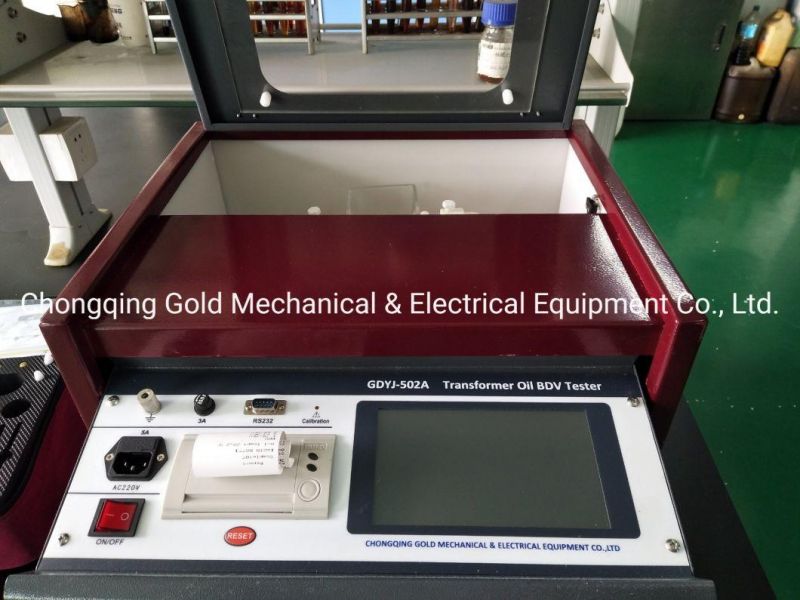

IEC60156 80kv Insulating Oil Dielectric Strength Tester Oil Bdv Tester
IEC60156 80kv Insulating Oil Dielectric Strength Tester Oil Bdv Tester
