• Model NO.：GD-265D-1
• Application：Kinematic Viscosity of Liquid Petroleum Products
• Stirring Motor：1200 Rpm
• Temperature Range：Ambient to 100.0c
• Temperature Control Accuracy：+,-0.01c
• Timer：0.0s~999.9s
• Constant Temperature Bath：20L, Double Shall Structure
• Capillary Viscometer Tubes：Pinkevitch Viscometer
• Net Weight：20.5kg
• Transport Package：Plywood , Wooden Case
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-265D-1 Application Kinematic Viscosity of Liquid Petroleum Products Stirring Motor 1200 Rpm Temperature Range Ambient to 100.0c Temperature Control Accuracy +/-0.01c Timer 0.0s~999.9s Constant Temperature Bath 20L, Double Shall Structure Capillary Viscometer Tubes Pinkevitch Viscometer Net Weight 20.5kg Transport Package Plywood / Wooden Case Origin Chongqing of China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

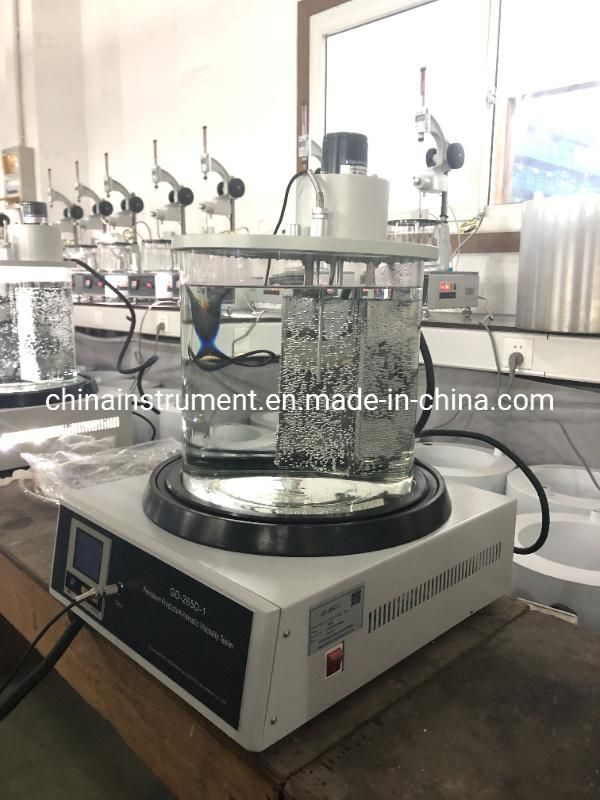

ASTM D445 Kinematic Viscosity Kinematic Viscometer for Liquid Petroleum Products




Reference Standard:

1. ASTM D445, IP 71 and ISO 3104 methods specify a procedure for the determination of the kinematic viscosity of liquid petroleum products, both transparent and opaque, by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer inside a viscosity bath.

2. Viscosity is an important fluid property when analyzing liquid behavior and fluid motion near solid boundaries. The kinematic viscosity is a measure of a fluid's internal resistance to flow under gravitational forces.

3. Kinematic viscosity = Dynamic viscosity / Fluid mass density. The equation is written. ν = η / ρ.


Key Features:

1. The Kinematic Viscometer is equipped with timing function.
2. It adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample. It adopts electric stirrer to ensure the uniform of bath temperature.
3. The Kinematic Viscometer can do two samples at the same time.
4. The Kinematic Viscometer comes with high accuracy.


Technical Specifications:

1. Power supply: AC 220 ± 10 %, 50 Hz.
2. Total power consumption: ≤1800W.
3. Stirring motor:1200 RPM
4. Temperature range: Ambient to 100.0ºC
5. Temperature control accuracy: ±0.01ºC
6. Timer: 0.0s~999.9s
7. Constant temperature bath: 20L, double shall structure.
8. Ambient temperature:15ºC~+35ºC; Relative humidity: <85%
9. Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm
10. Dimension: 530mm*400mm*670mm
11. Net weight: 20.5Kg
12. Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers. Cannon-Fenske Opaque capillaries according to customer's requirements.
