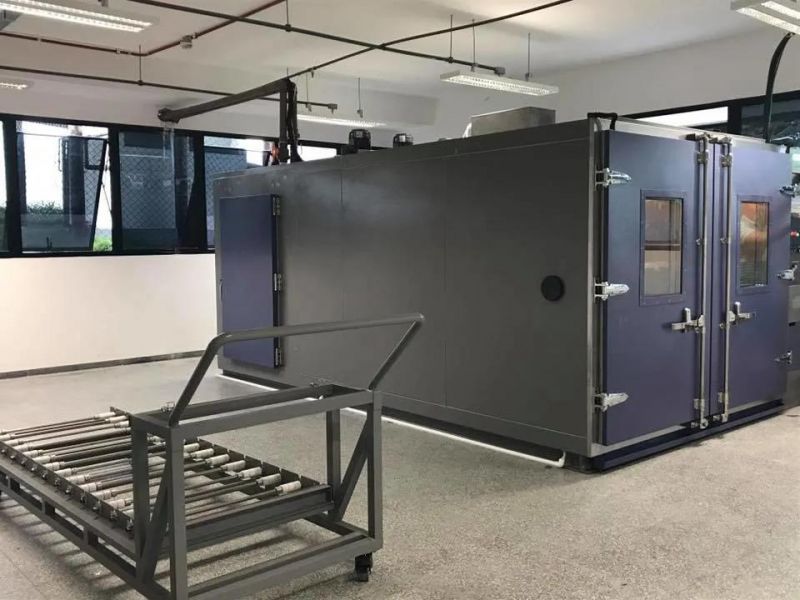

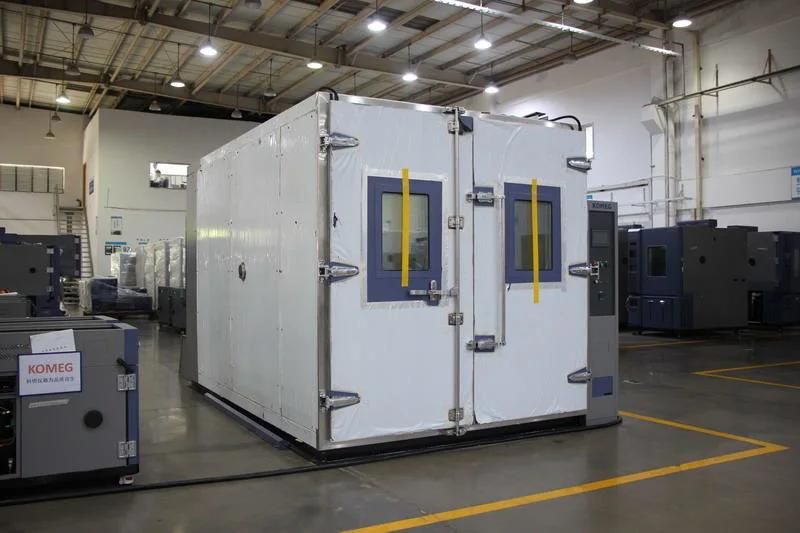

-70 to 80c Panelized Walk-in Environmental Chamber for Large Specimen Reliability Testing
Guangdong Komeg Industrial Co., Ltd.- Power Supply:380V ,220V
- Certification:CE, ISO
- Warranty:1 Year
- Temp. Range:-70 Oc~+80 Oc
- Humidity Range:10%~98%R.H.
- Interrior Dimension(W*H*D):4000*2100*2000mm
Base Info
- Model NO.:KMHW-16.8
- Volume(M3):16.8cbm
- Exterior Dimensions(W*H*D):5050*2350*2250mm
- Heat up Time:+20oc~+80oc Within 60mins
- Pull Down Time:+20 Oc~-55 Oc Within 120mins
- Insulation Material:Glass Wool+Rigid Polyurethane
- Refrigeration System:Semi-Hermetic Compressor(Imported)
- Controller:Programmable
- Transport Package:Strong Plywood Case
- Specification:Standard and Customized
- Trademark:KOMEG
- Origin:Guangdong, China
- HS Code:90321000
- Production Capacity:1000 Sets Per Yesr
Description
2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. The material quality of inner box is SUS304 # mounted stainless steel imported, and the outer box is steel plate and the painting process applies automobile coating technology. Box's body is processed shape using the Triumph processing machine, its shape is nice and neat.
4. Large-size Full-Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message, and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
3. Environmental Walk-In Chamber Main Technical Parameters
4. Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID, control the refrigerant flow to make the system's heating/humidification reduction, to achieve low power consumption, energy-saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
1, Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2, After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
