• Model NO.：GD-8019B
• Air Compressor：Yes
• Power Supply：AC(220;10%)V, 50Hz, 3500W
• Temperature Display：Digital Display
• Working Temperature：160~165 Celsius;232~246 Celsius
• Transport Package：Wooden Case Gd-8019b
• Trademark：Gold
• Origin：China
• Production Capacity：100 Piece,Pieces Per Month

Product name

Power supply

AC(220±10%)V,50Hz,2.5kW

Test wells

3 wells

Operating temperature

1) Test bath temperature is (232~246)ºC and test well temperature being (229~235)ºC for steam bath.
2) Test bath temperature is (160~165)ºC and test well temperature being (150~160)ºC for air bath.

Temperature control

Automatic

Temperature display

Digital

Flow display

Pressure gauge shows flow rate when steam vaporizing medium is used. Ball float type flowmeter shows flow rate when air vaporizing medium is used.

Working pressure of air reducing valve

0.035MPa(for air vaporizing medium).

Gas source

Electrical heating steam generator for steam vaporizing medium. Air compressure for air vaporizing medium, over (1000±150)ml/s.

Overall dimension

640mm×480mm×340mm(Thermometer holder is not included).

Electrical heating steam generator:

1. Model:LDRO.013-0.7
2. Rated evaporation capacity:13kg/h
3. Rated working pressure:0.7Mpa.
4. Power supply:3 phase, AC380V, 50Hz,9000W.
(An air compressure is optional for determining the existent gum content of motor gasolines.)

Product Packing:

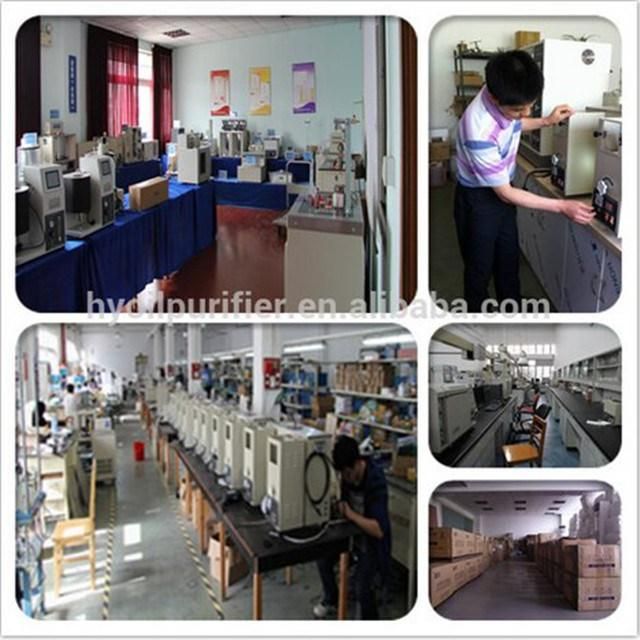

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .





Contact Information:

If you have interest, please feel free to contact with me:
Chongqing Gold Mechanical&Electrical Equipment Co., Ltd
website: chinainstrument.en.made-in-china.com
