500V Insulation Resistance Test Kit Megger Insulation Resistance Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Usage：Megger, High Voltage Insulation Resistance Test
- Output Voltage：250V, 500V, 2500V, 5000V, 10000V
- Power Supply：220V, 50Hz or Battery
- Power：Electronic
- Product Name：Multi-Function Megger Insulation Resistance Tester
- Transport Package：Carton Case
Base Info
- Model NO.：GD2010
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：1000PCS,Month
Description
±5%±3dgt
100GΩor more
±20%
Operating system:Dual integration
Display: Liquid crystal display(Max. 9999counts) Bar graph / Max. 31points
Low battery warning:Battery mark display (in 4 levels)
Over range indication:"----" mark appears on insulation resistance range.
Sample rate:approx 0.5~5 times/sec
Operable altitude:2000m or less above sea level
Temperature & humidity range (guaranteed accuracy):23±5ºC / Relative humidity 85% or less (no condensation)
Operating temperature & humidity range: 0ºC~+40ºC / Relative humidity 85% or less (no condensation)
Storage temperature & humidity range:-20ºC~+60ºC / Relative humidity 75% or less (no condensation)
Insulation resistance:1000MΩ or more /DC 1000V(Between electrical circuit and enclosure)
Dimension:230(L) ×190(W) ×90(D) mm
Weight:approx 3.5kg (battery included)
Power source:DC15V/4A Adapter Power Or DC9.6V: charging battery size AA×8pcs

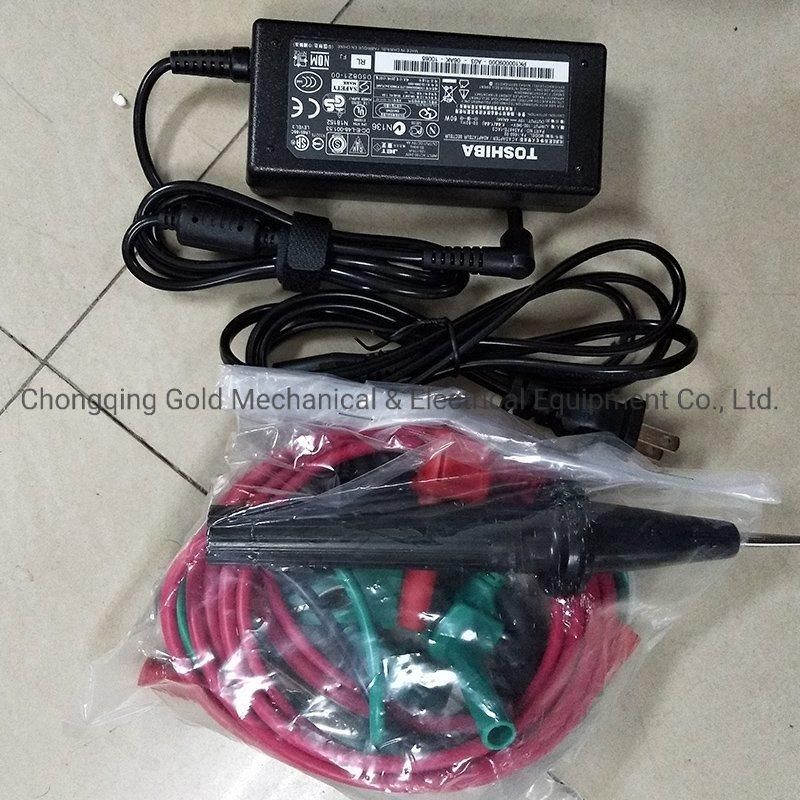

Details show 500V Insulation Resistance Test Kit Megger Insulation Resistance Tester
