• Model NO.：GD-0610
• Working Room Temperature：163c
• Temperature Control Accuracy：0.5c
• Rotary Speed：(15+-0.2) R , Min
• Air Flow：(4000+-200) Ml , Min
• Timing Device：85 Minutes Alarm
• Ambient Temperature：(5 ~ 50)C
• Relative Humidity：No More Than 85%
• Overall Power Consumption：No More Than 2.6kw
• Rfto：Asphalt Rolling Thin Film Oven
• Transport Package：Wooden Case
• Specification：Refer to ASTM D2872
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0610 Working Room Temperature 163c Temperature Control Accuracy 0.5c Rotary Speed (15+-0.2) R / Min Air Flow (4000+-200) Ml / Min Timing Device 85 Minutes Alarm Ambient Temperature (5 ~ 50)C Relative Humidity No More Than 85% Overall Power Consumption No More Than 2.6kw Rfto Asphalt Rolling Thin Film Oven Transport Package Wooden Case Specification Refer to ASTM D2872 Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

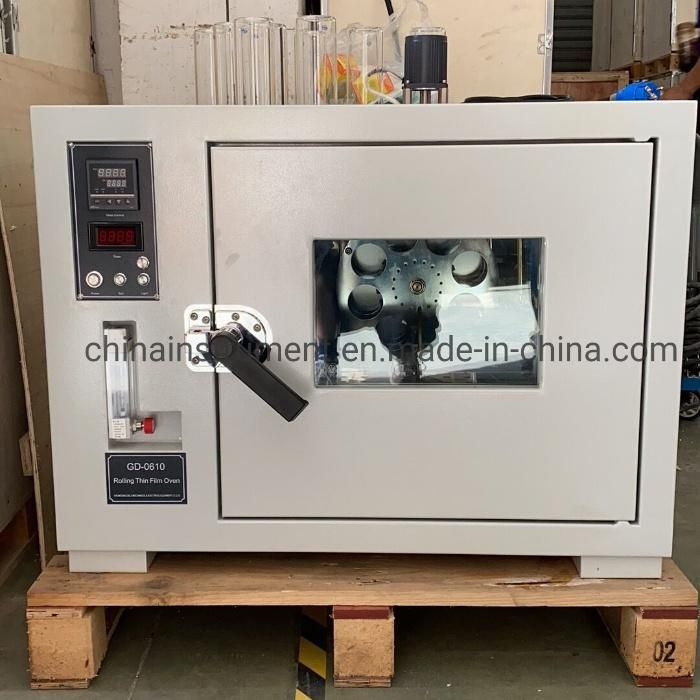

Gd-0610 RTFOT rolling thin film oven test conducted at 163C over a period of 85 minutes



Introduction:

The rolling thin film oven test is applied for simulating short term aging of asphalt binders by measuring the effect of heat and air on a moving film of semi-solid asphaltic material.

The rolling thin film oven test is designed and manufactured according to the requirements stipulated in T 0610-2011 "Asphalt Rotating Film Heating Test" of the People's Republic of China Industry Standard JTG E20-2011 "Road Engineering Asphalt and Asphalt Mixture Test Regulations".

The rolling thin film oven test is suitable for measuring the mass loss of road petroleum asphalt rotating film after heating. And according to the need to measure the rotation of the rotating film, the residue of the asphalt penetration, viscosity, ductility and brittleness and other properties to evaluate the aging performance of asphalt.


Key Features:

1. The Rolling Thin Film Oven is mainly composed of an electrical control part, an oven chamber, and a mechanical transmission device. The constant temperature room is equipped with a lighting lamp, which is convenient for outdoor observation of the indoor working conditions.
2. It adopts the ACO series electromagnetic air compressor and LZJ type air flow meter to meet and control the air flow required for the test.
3. It adopts 90YY60 / 90JB100 series gear motor system to accurately control the speed of test turntable.
4. It adopts high-precision intelligent temperature control instruments to ensure that the oven temperature reaches 163ºC ± 0.5ºC within 10 minutes after the sample is installed.


Parameters:

1. Working power supply: AC (220 ± 10%) V; 50Hz.
2. Heating power: 2.4kW.
3. Working chamber temperature: 163ºC.
4. Temperature control accuracy: ± 0.5ºC.
5. Rotary speed: (15 ± 0.2) r / min.
6. Air flow: (4000 ± 200) mL / min.
7. Timing device: 85 minutes alarm.
8. Ambient temperature: (5 ~ 50)ºC.
9. Relative humidity: ≤85%.
10. Overall power consumption: no more than 2.6kW.


GD-0610 RTFOT rolling thin film oven test conducted at 163C over a period of 85 minutes
