• Model NO.：GD-17040
• Reproducibility：<0.063 ( S+0.6)
• Sample Quantity：2 to 3 Ml
• Measurement Time：60, 120, 240, 300, and 600 S at Random
• Transport Package：Plywood Case
• Trademark：Gold
• Origin：China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. GD-17040 Reproducibility <0.063 ( S+0.6) Sample Quantity 2 to 3 Ml Measurement Time 60, 120, 240, 300, and 600 S at Random Transport Package Plywood Case Trademark Gold Origin China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

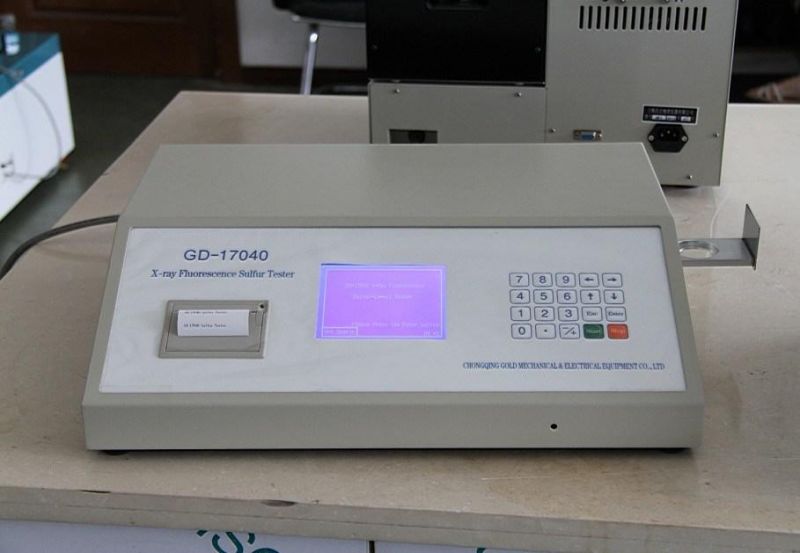

GD-17040 XRF Total Sulfur TesterPurposeGD-17040 XRF Total Sulfur Tester is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with integrated design, it is rapid and accurate. It can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-03 on these indexes. It provides a measure to determine sulfur content during petroleum or petrochemical production process. Features:1.  GD-17040 XRF Total Sulfur Tester can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.2.  GD-17040 XRF Total Sulfur Tester can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.3.  GD-17040 XRF Total Sulfur Tester can be used to determine total sulfur or sulfide in other liquid or solid powder samples.
 Instrument characteristics:1. Electromechanical integration; microprocessor control; large screen LCD display; Man-machine conversation; simple and beautiful;2.  GD-17040 XRF Total Sulfur Tester can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.3. Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).4. GD-17040 XRF Total Sulfur Tester has self-diagnostic function, so it can determine its working state and electric parameters.5. GD-17040 XRF Total Sulfur Tester takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunction pressure device, so it is rapid and convenient. It can record sample serial number, S% (m/m), and date.6. The sample holder can be precisely located. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system.7. It can save large quantity of test data. You can browse test data and calibration curve at any time.8. It uses a thermal printer, so it is easy to replace printing paper. It is needed to speed money on printing ribbon.9. Equipped with a RS232 serial port, it can connect with any computer or web system.10. Its safe X-ray protection measures can keep people from injury of X-ray radiation.
 Main technical parameters1. Measurement range: 7 ppm to 5%;2. Precision:(1) Repeatability: <0.029 ( S+0.6);(2) Reproducibility: <0.063 ( S+0.6);3. Sample quantity: 2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm);4. Measurement time: 60, 120, 240, 300, and 600 s at random;5. It can make determination automatically for single sample. Measurement times: can set 2, 3, 5, 10, and 50 times at random; it will show average value and standard deviation at end of measurement.6. Calibration curve numbers: it can save 9 calibration curves. 5 pieces of them are linear equation in one unknown and 4 pieces of them are binomial parabola.7. Working condition:(1) Temperature: 5 to 40 °C;(2) Relative humidity: ≤85% (30 °C);(3) Power supply: AC 220V±20V, 50 Hz;(4) Rated power: 30 W;8. Size and weight: 468 mm×368 mm×136 mm; 13 kg Package
