• Model NO.：HZ1411
• Weight：0-100Kg
• Power Source：AC220V
• Wave Form Distortion：Less Than 3%
• Supply Voltage：AC220V±10% 50Hz±1 Hz
• Applicable Humidity：Max Relative Humidity 75%
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030899090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ1411 Weight 0-100Kg Power Source AC220V Wave Form Distortion Less Than 3% Supply Voltage AC220V±10% 50Hz±1 Hz Applicable Humidity Max Relative Humidity 75% Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

Huazheng Electric Laboratory Transformer Insulation Dielectric Oil Gas Content Tester

Overview

In order to prevent transformer failure better and more comprehensively, the power industry has set higher requirements for the safe operation of transformers at all levels, and the test requirements for the gas content of transformer oil have also increased accordingly.

The insulating oil gas content tester is based on the DL423-91 power industry standard and relevant national standards. It uses imported high-precision sensors and the latest sensor technology. The determination of gas content in ultra-high pressure oil-filled equipment is an ideal test equipment in the laboratory. It will make your work easier!



Main Technical Indicators

1,High-precision electronic differential pressure sensor: the resolution shall be no less than 0.1%.

2,Minimum detection limit: no higher than 0.2%.

3,Accuracy: the relative error of the results of repeated measurement shall not exceed the following values:

 Gas content in oil (volume fraction),%         relative error,%

              < 0.5                               10

         0.5 - 1.0                                8

         1.0 - 3.0                               5

          > 3.0                                3

4,Temperature control range of degassing chamber: from 5ºC to 70ºC above room temperature

5,Working power supply: AC220V±10%     50HZ

6,Dimensions: L 450×W 325×H 350mm

7,Weight: About 20kg

Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

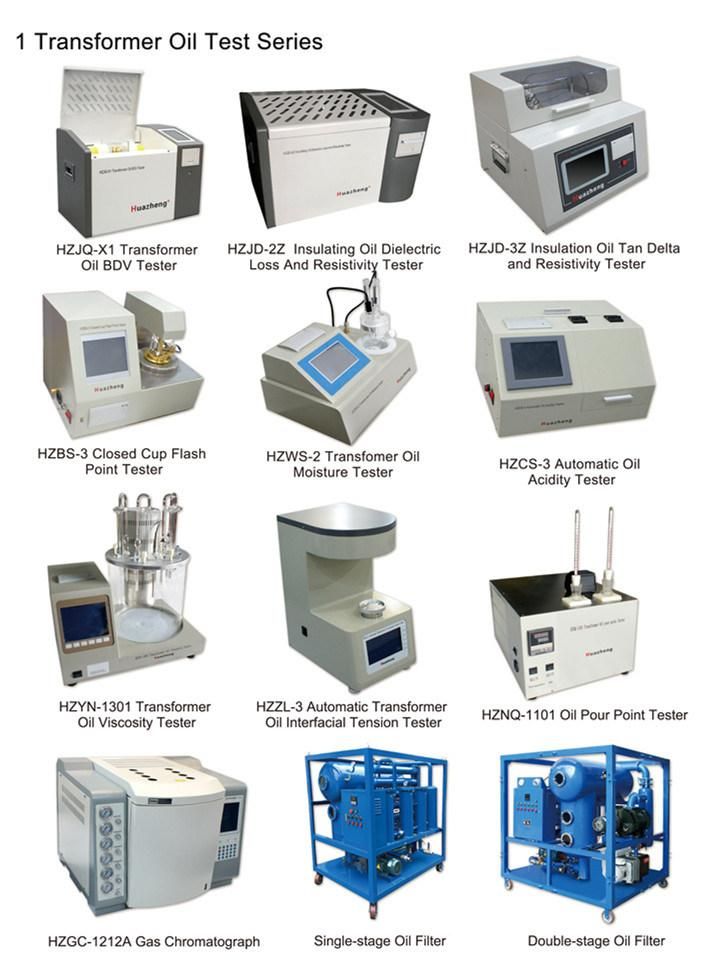

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
