• Model NO.：KR-DS800
• Boost Times：1-6 Times
• Booster Capacity：1.5kVA
• Transport Package：Standard Export Package
• Trademark：Kolery
• Origin：China

Basic Info.

Model NO. KR-DS800 Boost Times 1-6 Times Booster Capacity 1.5kVA Transport Package Standard Export Package Trademark Kolery Origin China

Product Description



Application:

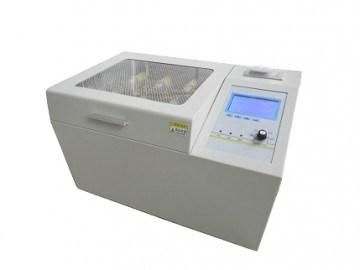

KR-DS600 dielectric strength tester complies to GB/T507-2002 and DL429.9-91 standard. This instrument is suitable for testing the degree of physical contamination of insulating oil by water or other suspended matters. Widely used in electric power, petroleum, chemical and other industries.

Features:

1. The use of microprocessors, automatic boost, hold, stirring, static release, calculation, printing and other operations, can be 0 ~ 80KV range of oil cycle pressure test.

2. 1 ~ 6 times breakdown voltage and the number of cycles will be automatically stored. After the testing, the thermal printer can print out the breakdown voltage and the average value.

3. Power down to store, can store 100 experimental results, and can display the current ambient temperature and humidity.

4. With over-voltage, over-current, limit and other protection to protect the safety of operators.



Technical Parameters:


Testing voltage:	0~80KV for option
Voltage distortion rate:	<3%
Boosting rate:	2.0~3.5 KV/S, adjustable
Electrostatic discharge time:	15 min, adjustable
Boosting interval:	15 min, adjustable
Boosting frequency:	1~6 times, optional
Booster capacity:	1.5KVA
Testing accuracy:	+/- (2%+2bit)
Power:	500W
Environment temperature:	10~45C°
Environment Humidity:	30%~80%
Dimension(largest):	465×385×425 (L*W*H)
