• Model NO.：GW-120B
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-120b
• Test Weight：0.5lb 2, 1.0lb 1 , 2lb1
• Counter：0~999,999
• Inner Diameter of The Collar：94 mm
• Locking Ring Height：≤9.5 mm
• Speed：120±15 ,Min
• Movement：25 mm
• Air Pressure：62 Kpa (9 Psi)
• Dimensions：560*280*580mm
• Power：AC220V,2A
• Transport Package：Standard Export Safety Packing
• Specification：56*28*58CM
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-120B Accuracy Grade 1 Load Way Mechanical Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-120b Test Weight 0.5lb 2, 1.0lb 1 , 2lb1 Counter 0~999,999 Inner Diameter of The Collar 94 mm Locking Ring Height ≤9.5 mm Speed 120±15 /Min Movement 25 mm Air Pressure 62 Kpa (9 Psi) Dimensions 560*280*580mm Power AC220V,2A Transport Package Standard Export Safety Packing Specification 56*28*58CM Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

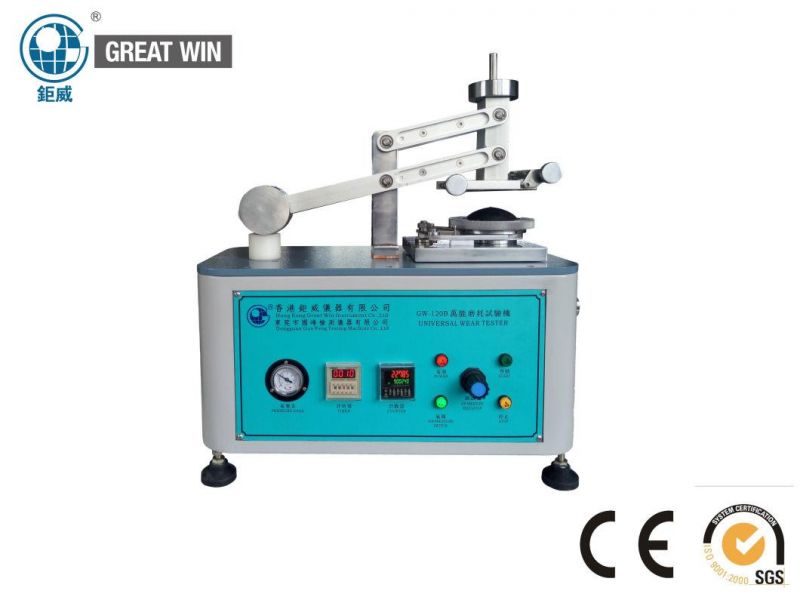

GW-120B Univeral abrasion tester

•Brief introduction:
The instrument's universal wear performance tester (Stoll Quartermaster) detects wear and abrasion resistance of a wide range of fabrics including apparel, footwear and industrial textiles.


•Technical Specifications:
1. Weight: 0.5lb 2, 1.0lb 1 , 2lb1
2. Counter: 0~999,999

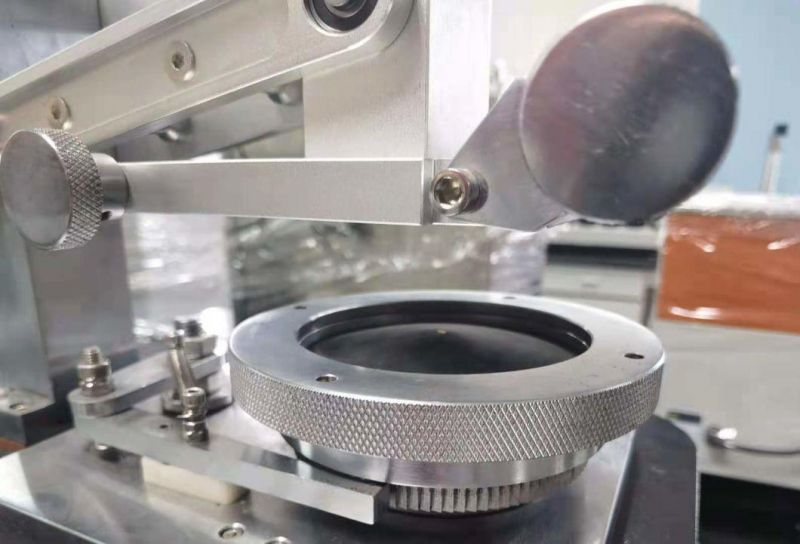

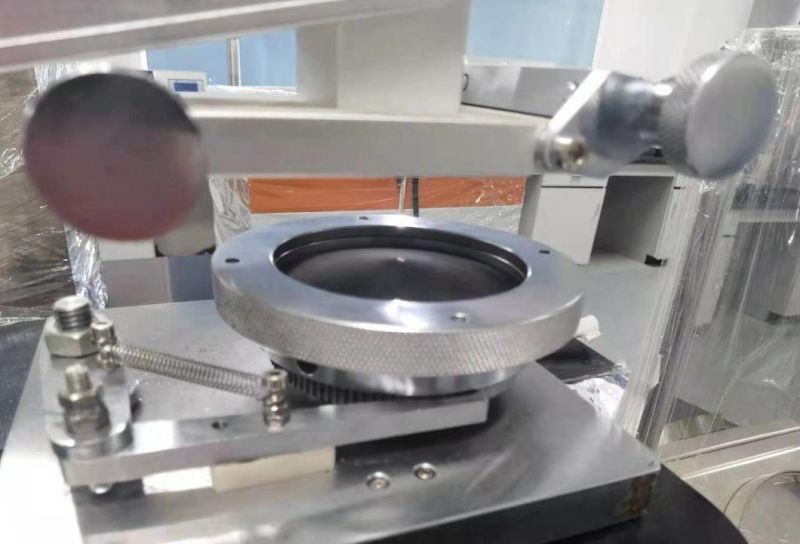

3. Inner diameter of the collar: 94 mm;
4. Locking ring height: ≤9.5 mm;
5. Speed: 120±15 /min;
6. Movement: 25 mm;
7. Air pressure: 62 kPa (9 psi);
8. Dimensions: 560*280*580mm (length × width × height);
9. Weight: 40kg;
10. Power supply: 220 V
11.Power:1∮,AC220V,2A


•Standard for:
ASTM D3514,D3885,D3886 AATCC 119,120 FTMS 191,5300,5302 FORD EFB 15J2/BN 112-01







What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
