• Model NO.：XHDJ705
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHDJ705 Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

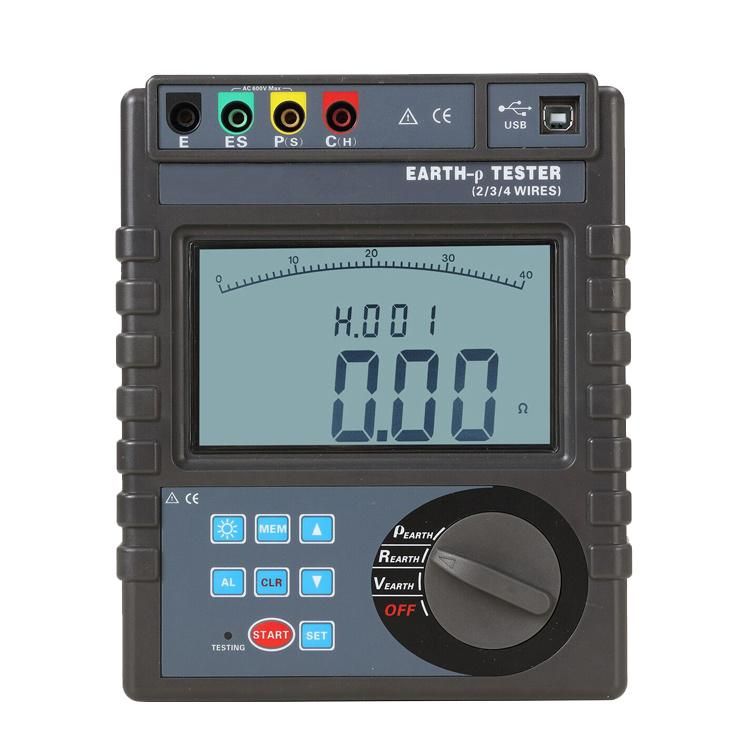

 Product IntroductionXHDJ705 Digital Earth Resistance Tester adopts the latest digital and micro-processing technology,3-pole or 2-pole method for earth resistance measurement.
Main Specifications1. Function: grounding resistance measurement, ground voltage measurement, low valueresistance measurement2. Power source: DC 9V zinc-manganese dry battery R14S 1.5V 6 knots; continuous standby for300 hours3. Measurement method: precision three-wire measurement, simple two-wire measurement,average, maximum, minimum4. Grounding resistance: rated current pole method, measuring current 3mA Max, 820Hz;5. Ground voltage: average rectification6. Display mode: 4-digit large LCD display, blue screen backlight7. Grounding resistance: Range: 0.01Ω~2000Ω±1%rdg±3dg Resolution: 0.01Ω8. Ground voltage: Range: AC 0 ~ 600V ± 1% rdg ± 3dgt Resolution: 1V9. Measurement time: ground voltage: 3 times / sec; grounding resistance: 5 seconds / time10. RS232 interface: RS232 interface, software monitoring, storage data can be uploaded to thecomputer, saved11. Working temperature and humidity: -10 ° C ~ 40 ° C; 80% RH or les
