• Model NO.：XHDB Series
• Specification：350mm*280mm*170mm
• Trademark：XZH TEST
• Origin：China Xi′ an
• HS Code：8543201000
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHDB Series Specification 350mm*280mm*170mm Trademark XZH TEST Origin China Xi′ an HS Code 8543201000 Production Capacity 100 Pieces /Year

Product Description

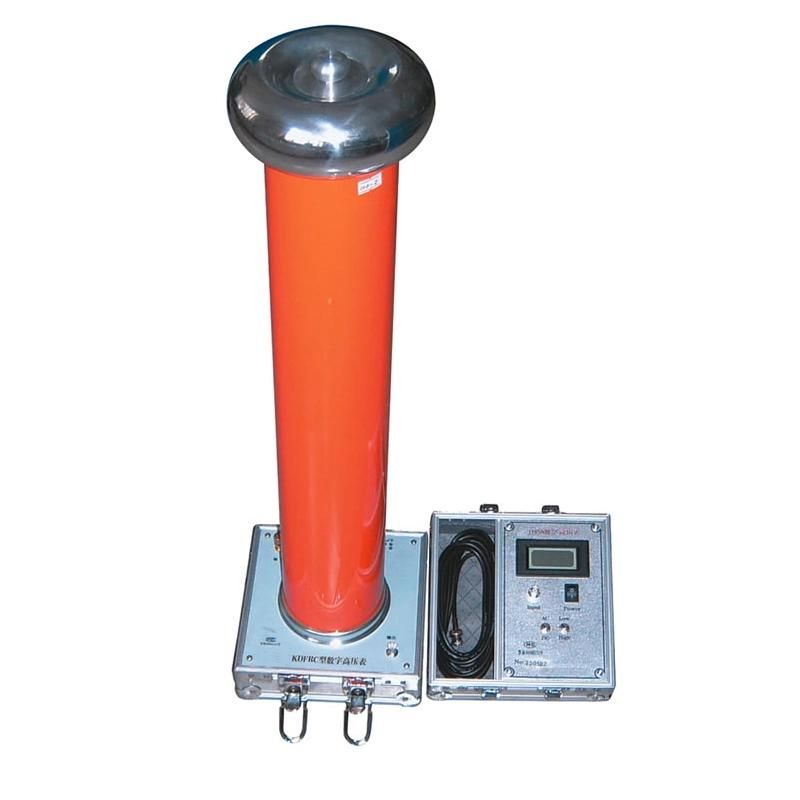

XHDB Series  High voltage divide



Product introduction:

XHDB series high voltage divider is a RC volume equalization shielding voltage division type high voltage measuring device. Mainly used for pulse high voltage, lightning high voltage, power frequency high voltage measurement. It is the first choice to replace the high voltage electrostatic voltmeter. It has the characteristics of simple operation, intuitive display, high precision, small size and light weight. It is suitable for power plant, substation, high-voltage electrical equipment manufacturing plant and high-voltage laboratory and other departments as the ideal equipment for high-voltage measurement.

Main Features:

1. High input impedance and good linearity;

2. Special shielding technology is adopted to reduce the influence of high pressure on the indication value, thereby achieving high stability and high linearity;

3. Imported filling material, small structure, light weight, higher reliability, internal partial discharge is reduced to a minimum;

4. Connected to the high-voltage measuring terminal through the instrument line, it can realize clear readings at a long distance, and it is safe and convenient to use.

Main Specifications:

5. Voltage level: 50kV, 100kV, 150kV, 200kV, 300kV

6. Accuracy: AC: 0.5% DC: 0.5%

7. The voltage division ratio adjustment mode: resistance capacity and partial pressure, using software multi-point measurement and verification technology to ensure consistency with the standard;

8. Environmental conditions: Temperature: -25 to 40 ° C Humidity: <85%

9. Partial pressure ratio: 1000:1

10. Appearance size: 170 × 170 × 720mm

11. Weight: 7kg
