EDC-2 Digital Controlled Small Asphalt Marshall Compactor
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Wooden Case
- Specification：0.3CBM
- Trademark：C-TECH
- Origin：China Mainland
Base Info
- Model NO.：EDC-2
- HS Code：90248000
- Production Capacity：100 Sets, Month
Description
Basic Info.
Model NO. EDC-2 HS Code 90248000 Production Capacity 100 Sets/ MonthProduct Description
Marshall compactor
This equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.
The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia.101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, compact times to be preset freely, auto counting and easy to operate etc.
Technical Parameter
| Hammer weight: | 4.536Kg±0.009 Kg |
| Hammer head: | dia. 98.5 mm |
| Specimen cylinder dimension: | 101.6 x 63.5 mm |
| Drop height: | 457.2 mm |
| Compact frequency: | 60 RPM |
| Compact time range: | 0-999 times |
| Dimension: | 540 x 540 x 1740 mm |
| Power: | 220 V, 50 HZ, 370 W |
| Weight: | 150 Kg |

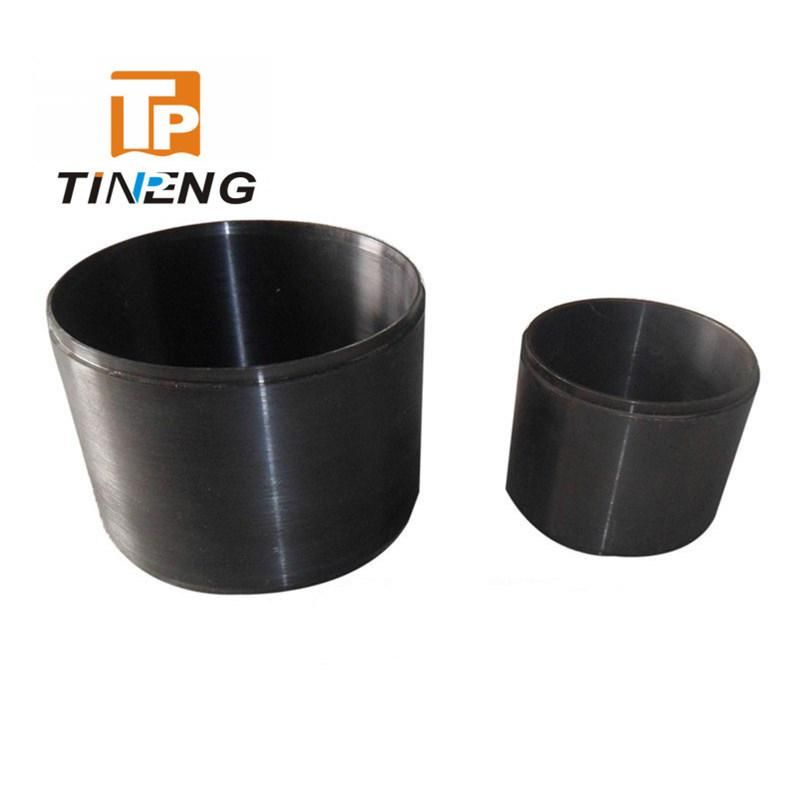

Marshall Compaction Mould Picture
