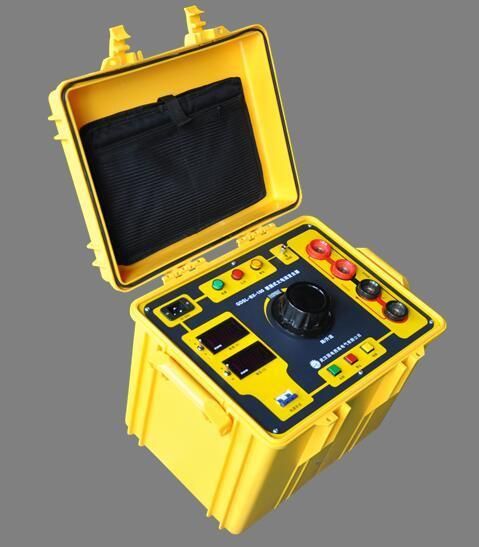

GDSL-BX-200 Primary Current Injection Big Current Test Set
HV Hipot Electric Co., Ltd.- After-sales Service：yes
- Warranty：1 year
- Type：Current Generator
- Maxcapacity：1000A
- Accuracy Grade：1.5
- Load Way：Electronic Load
Base Info
- Model NO.：GDSL-BX-200
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC Meter
- Power Supply：AC 220V 50Hz
- Output Power：3kVA
- Output Current：500A in Series, 1000A in Parallel.
- Output Voltage：6V in Series, 3V in Parallel
- Secondary Injection Current：50A
- Duty Cycle：5mins on, 10mins off
- Installation：Portable Precise
- Accuracy：1
- Application：Electronic Equipment, Electric Power
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：9030339000
- Production Capacity：3000PCS,Year
Description
Current can be adjusted smoothly and continuously, accuracy level 1.0Output current is standard sine wave, wave distortion is less than 5%. The action time of test object can be tested, the lock action time is also can be recorded at same time. Capacity is designed as 5 minus for short and discontinuous working.
