• Model NO.：PHLD-16
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Brand Name：Jp
• Model Number：Phld-65
• Power：Electronic
• Usage：Balancing Machine
• Output Power：2.2kw
• Length：1200 mm
• Width：1200 mm
• Height：1300 mm
• Gross Weight：530 Kg
• Colour：Jp Standard
• Transport Package：Packed in Fumigated Wood Box
• Specification：CE, ISO, SGS
• Trademark：JP
• Origin：Shanghai, China
• HS Code：90311000
• Production Capacity：1000 Set,Sets Per Month Negotiation

Basic Info.

Model NO. PHLD-16 Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Top Brand Name Jp Model Number Phld-65 Power Electronic Usage Balancing Machine Output Power 2.2kw Length 1200 mm Width 1200 mm Height 1300 mm Gross Weight 530 Kg Colour Jp Standard Transport Package Packed in Fumigated Wood Box Specification CE, ISO, SGS Trademark JP Origin Shanghai, China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month Negotiation

Product Description

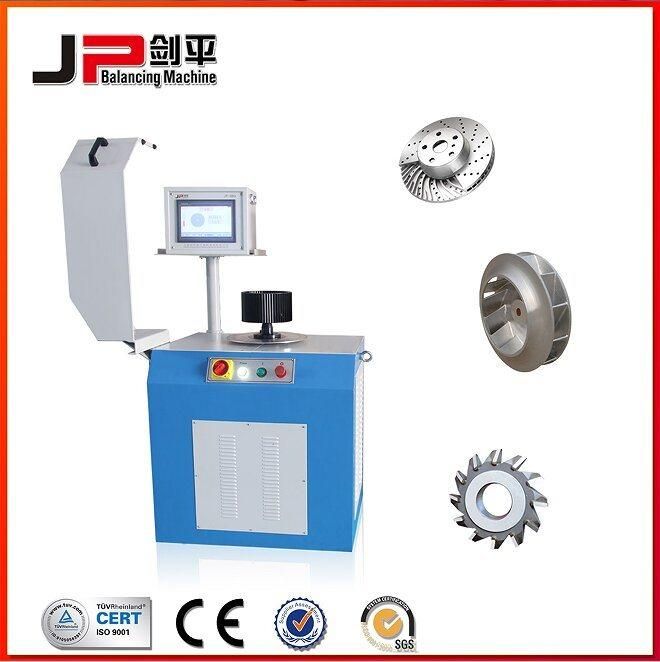

Balancing Machine for Woodworking saw blade:



Applicable to medium workpieces

1) With hood
2) Without hood
3) Frequency conversion


 Range of Application
The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc .High speed and precision are advanages of this balancing machine.

According to user's requirement,The machine can install de-weight device

Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

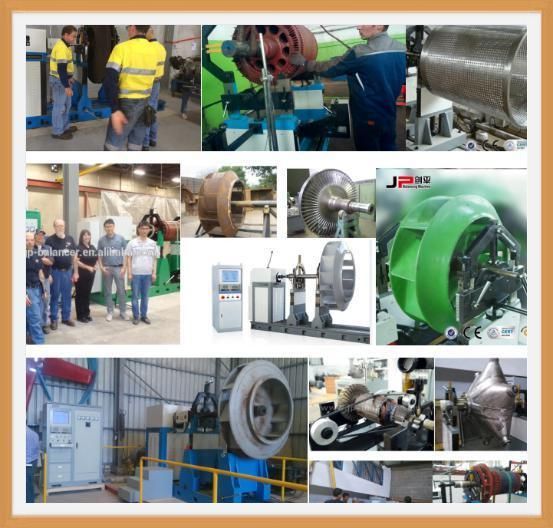

Customer use display



About us & Certificate

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.

We have ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.

Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine

Production Parameters

Technical data at a glance	PHLD-16	PHLD-42	PHLD-65
Max Mass of  Workpiece (with clump)  (kg)	16	42	65
Max Diameter of Workpiece (mm)	510 With hood  800 Without hood	510 With hood 800Without hood	510 With hood 800 Without hood
Height of Workpiecemm	160	160	160
Rotation Speed of Main Axis (r/min)	900	800	700
Motor Power  (kw)	1.5	1.5	2.2
Min Achievable Residue Unbalace Amount (emar)	5g. mm/kg	5g. mm/kg	5g. mm/kg
