Digital Automatic Compact Marshall Compactor
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Type:Impact Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:EDC-2
- Control:Computer Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Hammer:2.5kg
- Hammer2:4.5kg
- Cylinder:Dia.100, 152mm
- Transport Package:Standard Export Wooden Box
- Trademark:C-Tech
- Origin:Hebei, China
- HS Code:90248000
- Production Capacity:10000 PCS,Year
Description
Basic Info.
Model NO. EDC-2 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Hammer 2.5kg Hammer2 4.5kg Cylinder Dia.100, 152mm Transport Package Standard Export Wooden Box Trademark C-Tech Origin Hebei, China HS Code 90248000 Production Capacity 10000 PCS/YearProduct Description

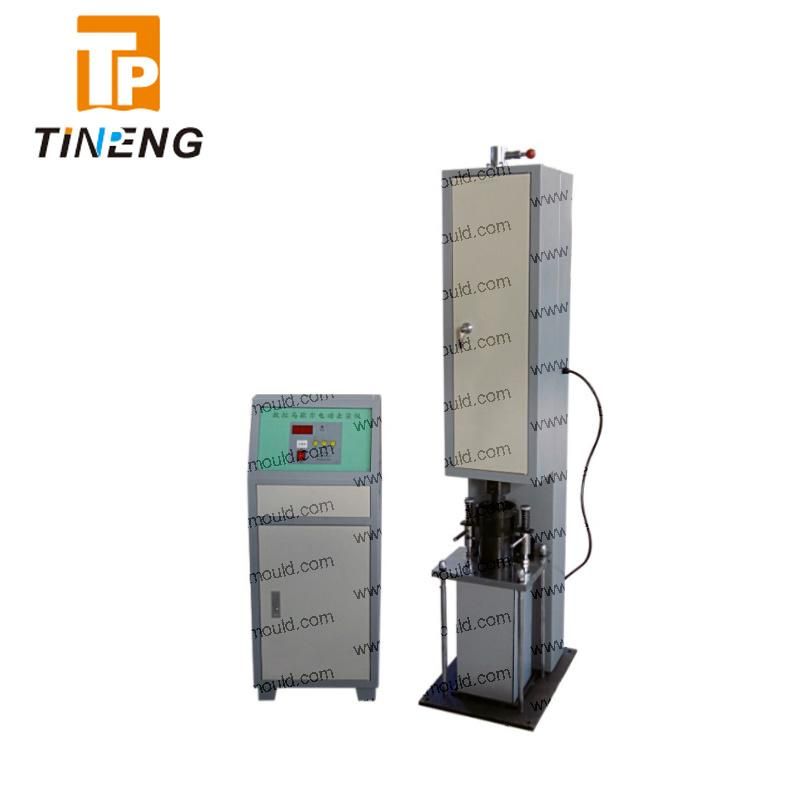

Digital Marshall CompactorThis equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.
The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia.
101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, compact times to be preset freely, auto counting and easy to operate etc.
Model EDC-2
Hammer weight: 4.536Kg±0.009 Kg
Hammer head: dia. 98.5 mm
Specimen cylinder dimension: 101.6 x 63.5 mm
Drop height: 457.2 mm
Compact frequency: 60 RPM
Compact time range: 0-999 times
Dimension: 540 x 540 x 1740 mm
Power: 220 V, 50 HZ, 370 W
Weight: 150 Kg
