• Model NO.：STDFA-3
• Loading Method：Static Load
• Display：Digital
• Control：Electronic
• Weight：170kg
• Power Source：AC380V
• Oil Cylinder Position：No
• Steel Ball：Dia.10mm
• Rotation Speed：100rpm
• Inner Cylinder Size：Dia.200X154mm
• Voltage：AC 380V,3 Phase
• Dimension：1100 X 470 X 1200mm
• Transport Package：Wooden Case
• Specification：0.63CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDFA-3 Loading Method Static Load Display Digital Control Electronic Weight 170kg Power Source AC380V Oil Cylinder Position No Steel Ball Dia.10mm Rotation Speed 100rpm Inner Cylinder Size Dia.200X154mm Voltage AC 380V/3 Phase Dimension 1100 X 470 X 1200mm Transport Package Wooden Case Specification 0.63CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

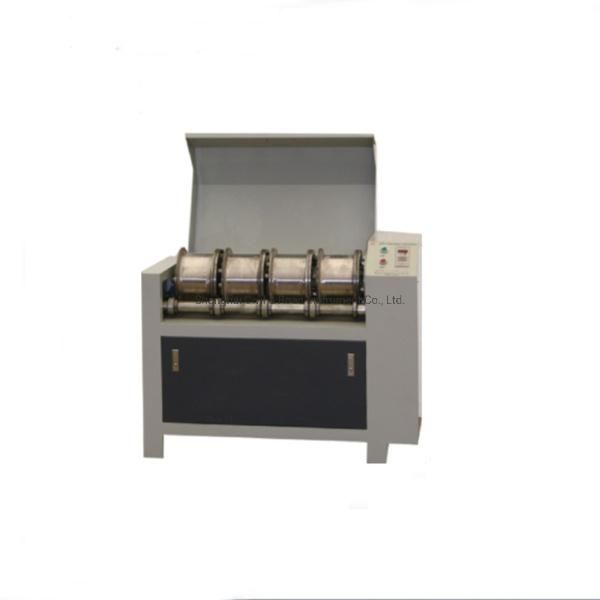

STDFA-3 DEVAL ABRASION TESTING MACHINE/MICRO-DEVAL TESTER(APPARATUS)

STANDARD:  EN 1097-1, EN 13450, NF P18-576

This machine is used to determine the resistance to wear of aggregates. The machine consists of a steel frame suitable to house four 200 mm dia.x 154 mm length cylinders (EN 1097-1) or two 200 mm dia.x 400 mm length cylinders (EN 13450). The top machine is enclosed in a sound proof and safety cabinet conforming to CE requirement and stops automatically when the cover is open. The machine is equipped with an automatic counter, which can be preset  to the required number of revolutions of the drum or  the total working time. The four standard cylinders 200 mm dia.x 154 mm length are included. The 400 mm long cylinders and steel spheres are not included and have to be ordered separately. See accessories.

Features:
• Complete with four Stainless steel cylinders      200 mm dia.x154 mm length
• Suitable for rolling two 200 mm dia.x400 mm long cylinders
• Revolutions setting counter included
• Enclosed in safety protection

Main technical parameter:

Steel ball	Dia.10mm
Rotation speed	100RPM
Inner cylinder size	Dia.200x154mm
Voltage	AC 380V/3 phase
Dimension	1100 x 470 x 1200mm
Weight	170kgs
