• Model NO.：HTPV-09
• Loading Method：Dynamic Load
• Display：Computer
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Without
• Material：Aluminum Alloy
• Function：Test PV Moudle′s Resistance Impact
• Name：IEC61215-22016 Standard PV Module Hail Testing Mac
• Impact Area：2000*1000mm
• The Diameter of Hail：25mm, 35mm,45mm
• Hail Speed：23m,S,27m,S,30.7m,S
• Transport Package：Wood Case
• Specification：IEC61215, UL1703
• Trademark：HOTOTECH
• Origin：Dongguan, Guangdong Province
• HS Code：9013809000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. HTPV-09 Loading Method Dynamic Load Display Computer Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Without Material Aluminum Alloy Function Test PV Moudle′s Resistance Impact Name IEC61215-22016 Standard PV Module Hail Testing Mac Impact Area 2000*1000mm The Diameter of Hail 25mm, 35mm,45mm Hail Speed 23m/S,27m/S,30.7m/S Transport Package Wood Case Specification IEC61215, UL1703 Trademark HOTOTECH Origin Dongguan, Guangdong Province HS Code 9013809000 Production Capacity 50 Sets Per Month

Product Description

IEC61215-22016 standard PV Module Hail Testing Machineice ball impact testing machine

Standard
according to IEC61215,IEC64646,UL1703

Purpose
use to verification module resistance impact ability , artifical hockey use
 to simulate hail , and to the constant speed impact component , simulate hail climate against component effect .

Parameter
1.Effective impact area:1200 * 2100mm

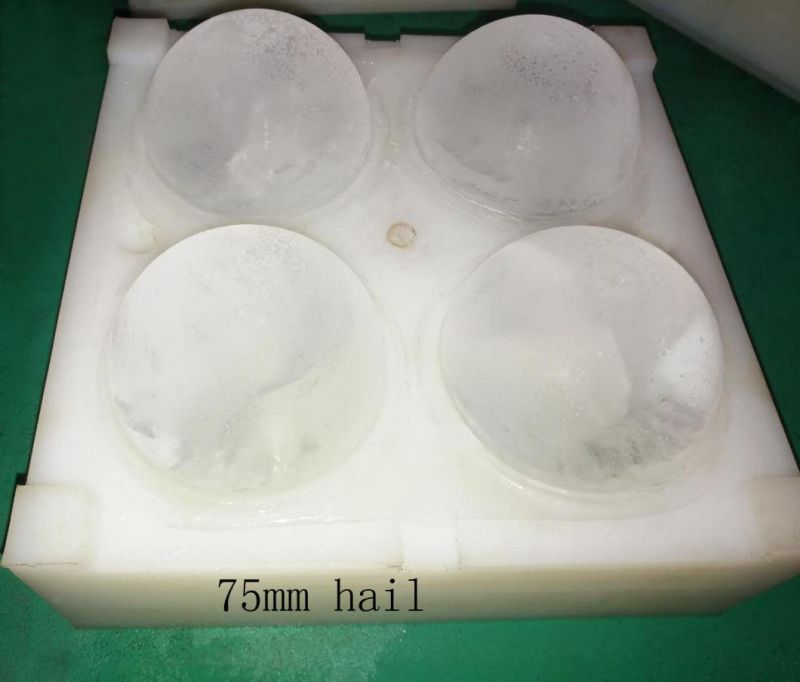

2.Standard hail diameter:25mm±5%
3.Standard hail mass:7.53g±5%
4.Hail setting speed:23.0m/s±5%
5.Speed measurement accurate :±2%
6.Hail mass measurement accurate:±2%

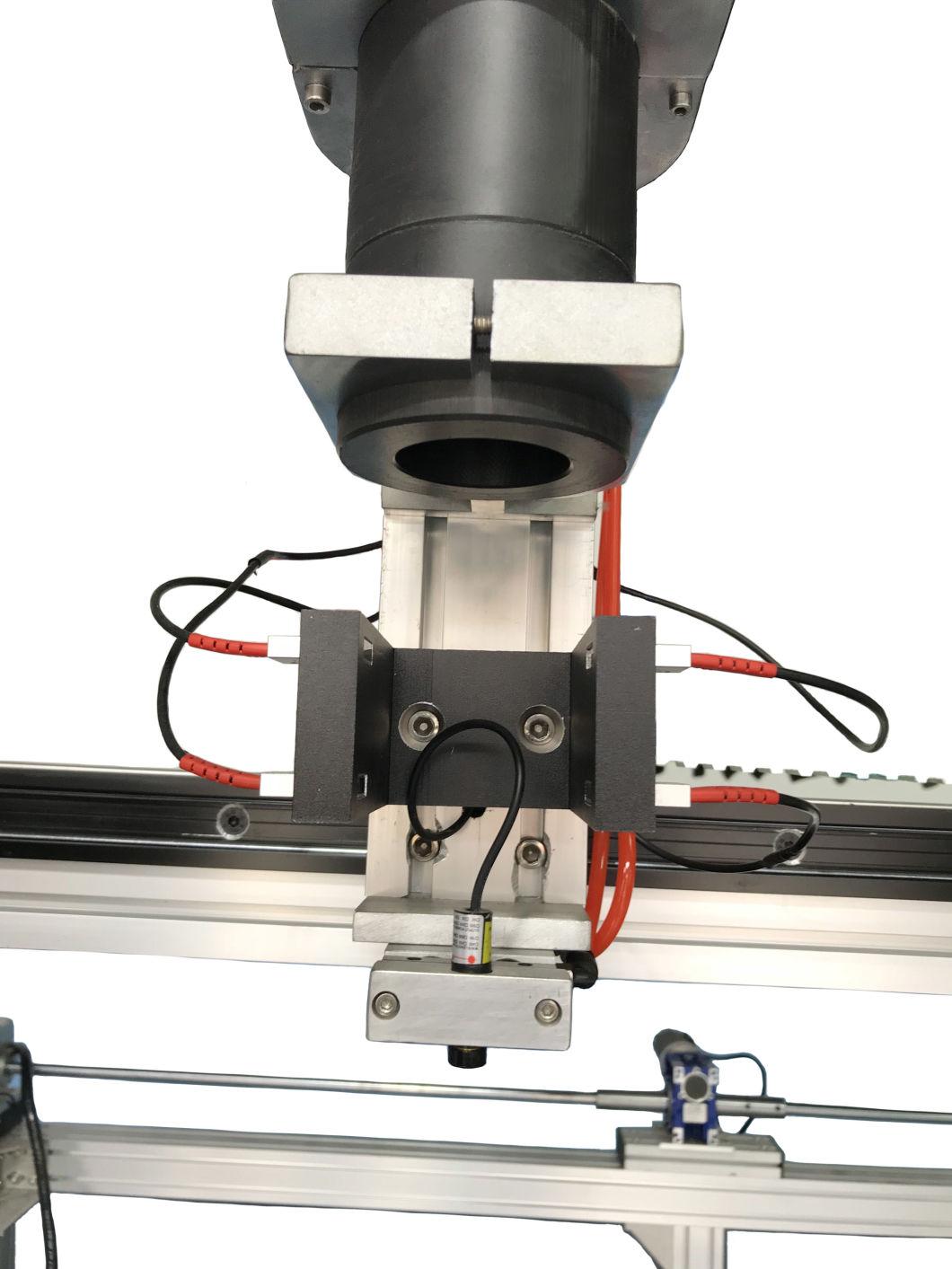

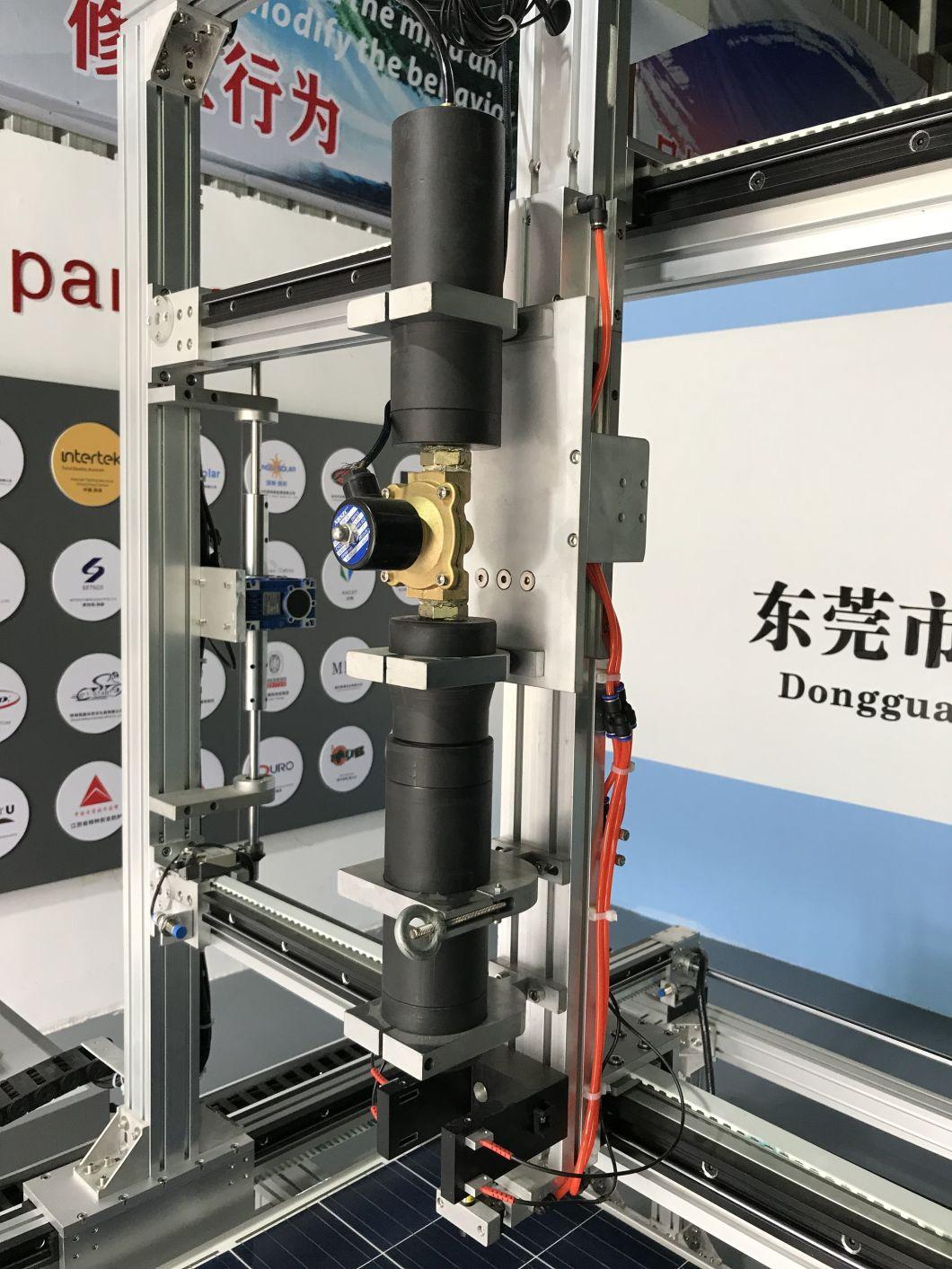

7.Pneumatic shoot system
8.Main function:
8.1,Chinese operate interface,setting impact position ,impact speed , hail reference ,time etc reference.
8.2,two dimension stepping driving system , the interface can setting the displacement
8.3,can programme control automatic being multipoint impact test
8.4,the hail shoot speed through compression air's pressure adjust
8.5,light spot fixed point collimation function ,convenience to ensure impact point position

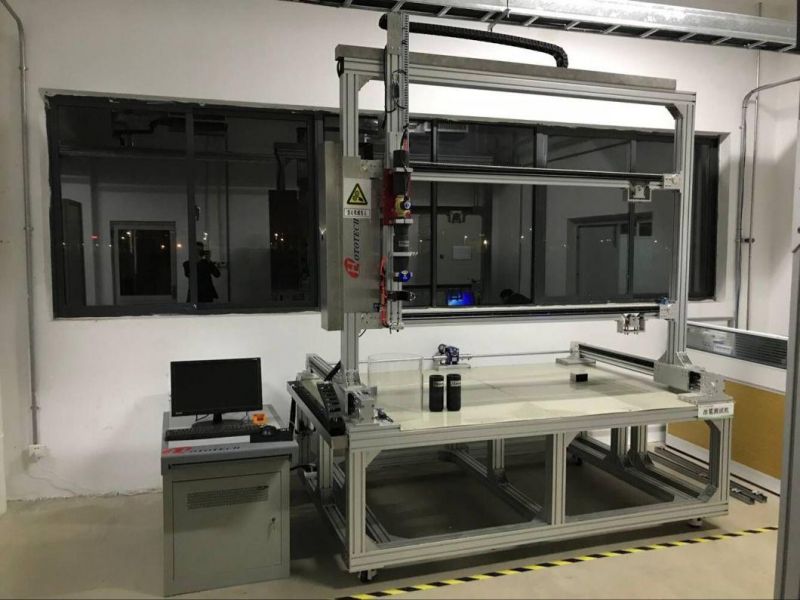

Product show
