80kv Vlf Very Low Frequency AC Hipot Tester for 35kv Power Cable

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Variable Frequency：0.1Hz, 0.05Hz, 0.02 Hz
  • Output-Voltage：30kv-80kv
  • Stability of Frequency：Fluctuation < 0.5%

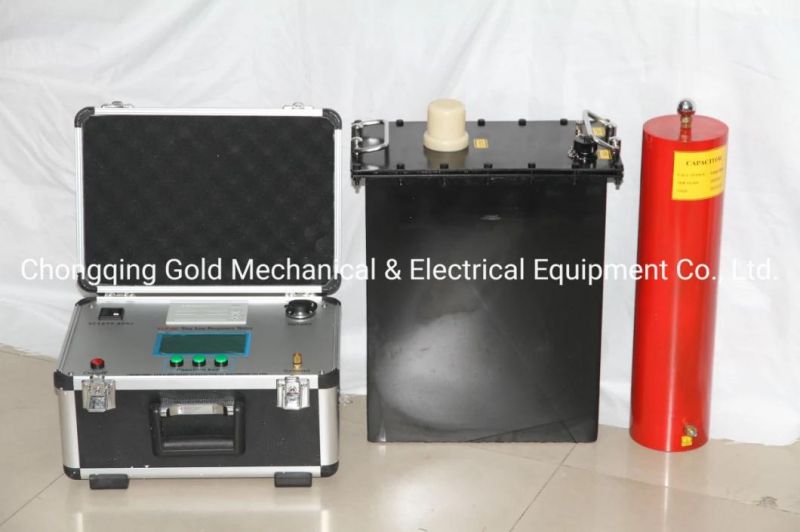

  • Construction：Controller and Booster
  • Measurement Accuracy：± 3%
  • Positive and Negative Voltage Peak Error：≤ 3%

Base Info

  • Model NO.：VLF
  • Voltage Waveform Distortion：≤ 5%
  • Construction: in Two Units：Controller and Booster
  • Input：220 ± 10% Volts AC, 50,60 Hz, Single Phase
  • Transport Package：Standard Wooden Case
  • Specification：45kg
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：500PCS, Month

Description

ModelOutput Voltage/CurrentLoad  Capacity Frequency/Capacitance VLF-30/1.1  30KV/20mA0.1Hz  ≤   1.1uF0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-40/1.1  40KV/30mA0.1Hz  ≤   1.1uF0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-50/1.1  50KV/40mA0.1Hz  ≤   1.1uF0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-60/1.1  60KV/50mA0.1Hz  ≤   1.1uF0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-70/0.5  70KV/55mA0.1  Hz,   ≤ 0.5µ F0.05Hz,   ≤ 1.0µ F0.02Hz,   ≤ 2.5µ FVLF-80/0.5  80KV/60mA0.1  Hz,   ≤ 0.5µ F0.05Hz,   ≤ 1.0µ F0.02Hz,   ≤ 2.5µ F
