• Model NO.：STLM-II
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：260kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stlm-II ASTM D3910 Wet Wheel Abrasion Loss Tester
• Application：Used to Perform Abrasion Test of Asphalt Emulsion
• Voltage：220V
• Power：250W
• Abrasion Head Weight：2.27kg
• Time Cotroller：Digital Display and Adjustable
• Template：300*300*6mm
• Circular Opening of Template：279mm
• Abrasion Head：Revolution 61rpm, Rotation 140rpm
• Transport Package：Wooden Case
• Specification：0.25 CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLM-II Loading Method No Display Digital Control Manual Control Weight 260kg Power Source AC220V Oil Cylinder Position No Product Name Stlm-II ASTM D3910 Wet Wheel Abrasion Loss Tester Application Used to Perform Abrasion Test of Asphalt Emulsion Voltage 220V Power 250W Abrasion Head Weight 2.27kg Time Cotroller Digital Display and Adjustable Template 300*300*6mm Circular Opening of Template 279mm Abrasion Head Revolution 61rpm, Rotation 140rpm Transport Package Wooden Case Specification 0.25 CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

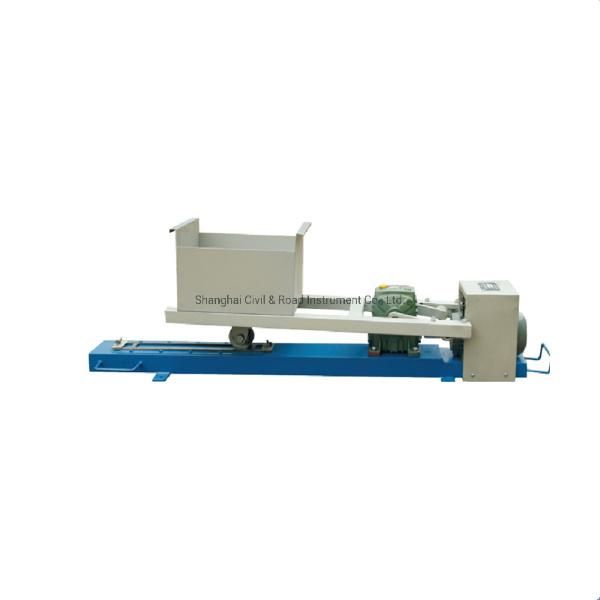

STLLN-2 Emulsified Asphalt Wheel Roller Compacting Testing Machine


Application: It is suitable to test if there is excess asphalt in slurry seal mixture of emulsified asphalt.

Laboratory Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is designed and made as per T 0755-2011 "Load Wheel Burnt-on Sand Test for Slurry Mixtures" in the Traffic Standard of the People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .

Laboratory Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is suitable to control the upper limit of asphalt used in the slurry mixtures .It can confirm the best asphalt content of slurry mixtures together with wet wheel abrasion test .
Features:
1.The Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is a floor structure, the structure design of the instrument, and test apparatus of the specifications of the size are accord with the requirement of T0755 standard. The design is novel, the structure is stable, and the use is convenient.
2.Mechanical transmission part design with safety protection device to prevent misidentification of the operator, safe and reliable.
3.Rolling frequency set by the operator in advance, when testing instrument automatic counting at work, until the count value is equal to the set point count stop, the instrument stop working.


Technical Parameters:

Hardness of rubber loading wheel	60-70
Roller compacting counter	digital display and adjustable
Rolling frequency	44 times/min
Specimen specific	3, 5, 6, 8, 10mm
Radius of crank	15cm (inner size 50X380mm)
Voltage	AC380V±10%,AC220V±10%
