Digital Auto Asphalt Equipment Ring and Ball Apparatus for Measuring The Softening Points of Bitumen
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：GD-2806G
- Loading Method：Dynamic Load
- Weight：0-100Kg
- Power Source：AC220V
- Softening Point Apparatus：Automatic Bitumen Softening Point Apparatus
- ASTM D36：to Do Softening Point Test of Bitumen
- Softening Point of Bitumen：Magnetic Stirring, The Stirring Speed Is (0 ~ 300)
- Communication Interface：RS-232c
- Measurement Range：+5c~+80c or 32c~160c
- Temperature Resolution：0.01c
- Cubage of Beaker：800ml
- Data Display：Touch LCD Display
- Ambient Temperature：15~35c
- Transport Package：Wooden Case
- Trademark：GOLD
- Origin：China
- HS Code：9031809090
- Production Capacity：100sets,Month
Description
Measurement rangeHeating medium: distilled water +5ºC~+80ºC(softening point under 80ºC) Heating medium: glycerin +32ºC~+160ºC(softening point over 80ºC) 4 Heating rate Automatically adjusted to (5 ± 0.5)ºC / min three minutes after the start of the test 5 Heating power 600W 6 Medium stirring Magnetic stirring, the stirring speed is (0 ~ 300) rpm 7 Effective volume of beaker 800ml 8 Data display Touch LCD display 9 Communication interface RS-232C 10 Ambient temperature 15ºC ~ 35ºC 11 Relative humidity ≤85% 12 Total power consumption ≤700 W 13 Dimensions 400mm×300mm×250mm

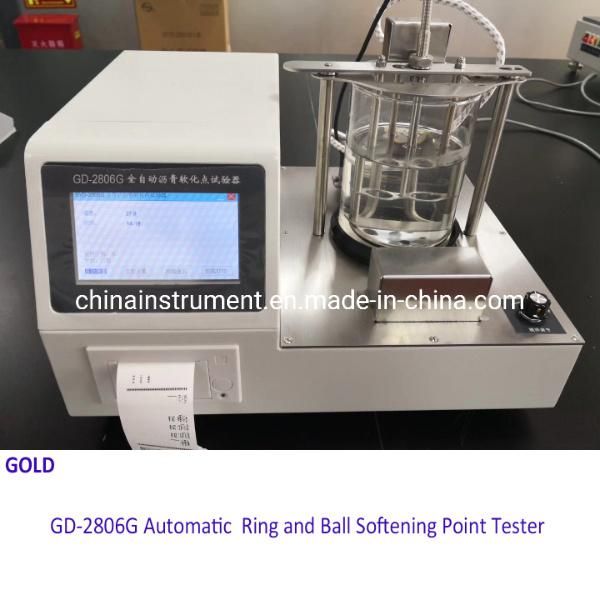

Real Picture of Auto Ring and Ball Apparatus:
Real Picture of Auto Ring and Ball Apparatus:
