• Model NO.：STLWC-2
• Loading Method：No
• Display：Digital
• Control：Electronic
• Weight：30kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stlwc-2 Deflectometer and Dynamic Plate Load Teste
• Application：Used to Test All Kinds of Soil and Rock in Road
• Testing Depth：0-500mm
• Loading Device Weight：15kgs
• Hammer Weight：10kg
• Max. Impact Force：7.07kn
• Duration of Impact：18 Ms
• Load Plate：Weight: 15kgs
• Settlement Measuring Range：0.20 -2.0 mm
• Storage Capacity：2000 Groups
• Power：3.7V,3.8ah Lithium Ion Battery
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLWC-2 Loading Method No Display Digital Control Electronic Weight 30kgs Power Source AC220V Oil Cylinder Position No Product Name Stlwc-2 Deflectometer and Dynamic Plate Load Teste Application Used to Test All Kinds of Soil and Rock in Road Testing Depth 0-500mm Loading Device Weight 15kgs Hammer Weight 10kg Max. Impact Force 7.07kn Duration of Impact 18 Ms Load Plate Weight: 15kgs Settlement Measuring Range 0.20 -2.0 mm Storage Capacity 2000 Groups Power 3.7V/3.8ah Lithium Ion Battery Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

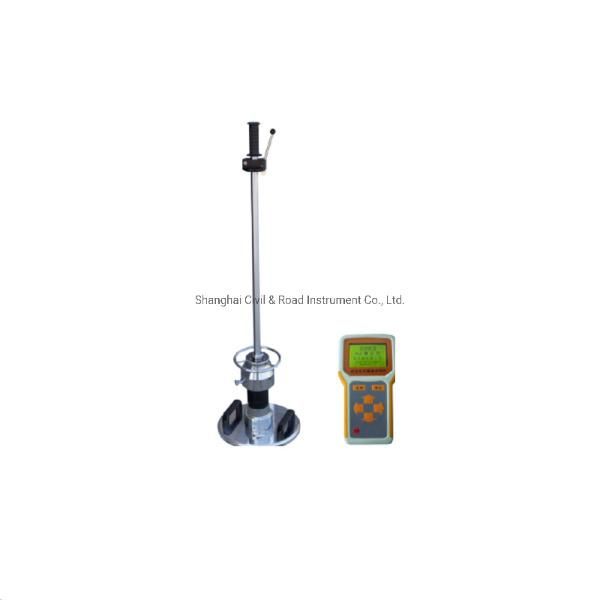

STLWC-2 Deflectometer and Dynamic Plate Load Tester

Application	It used to test all kinds of soil and rock in road construction. Testing range: 10MPa≤EVD≤225MPa Testing depth: 0-500mm
Loading device	Loading device weight: 15kgs hammer weight: 10kg Max. impact force: 7.07kN Duration of impact: 18 ms
Load plate	Weight: 15kgs Diameter: 300mm Thickness: 20mm
Settlement measuring monitor	Settlement measuring range: 0.20 - 2.0 mm Storage capacity: 2000 groups Weight: 1kg Power: 3.7V/3.8AH lithium ion battery
