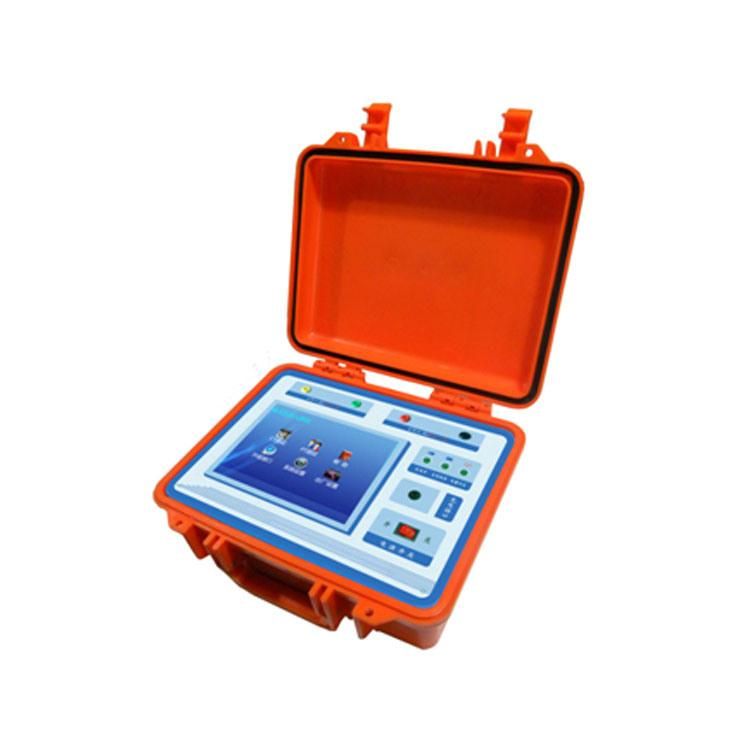

XHBJ204Transformer polarity tester

Product description

XHBJ204 transformer polarity tester is designed to test the turns ratio and polarity of current transformer and voltage transformer. The instrument adopts large colorful screen touch design, which greatly facilitates the customer's operation. The internal precision and high anti-interference circuit design principle is adopted, greatly improved the measurement accuracy. The internal power supply is provided by a large-capacity lithium battery, which is convenient for the user to test in the field. It can work for 12 hours after the battery is fully charged. The product design is reasonable and the operation is simple.



Main features

1. The 8.6-inch true colorful touch screen design, it solves the problem of traditional button failure.

2. The internal use of precision DSP operation, which greatly improves measurement accuracy and speed, and saves cost for user testing.

3. A large-capacity rechargeable lithium battery is used to solve the problem of no AC power supply at the site.

4. Adopt integrated circuit design principle to reduce instrument weight, it's easy to carry

5. The design interface is beautiful and the wiring is easy to understand.



Main Technical Parameters

Primary current range: 1-50000A

Secondary current range: 5A, 1A

Primary voltage range: 100-1000KV

Secondary voltage range: 100V, 100/√3V, 100/3V, 150V, 220V, 380V, 400V

Working environment: temperature 0~+40°C

Humidity: <85%,  no condensation

Dimensions: 300×240×140mm

Weight: 5kg
