• Model NO.：XHJB612
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHJB612 Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description



Product Introduction

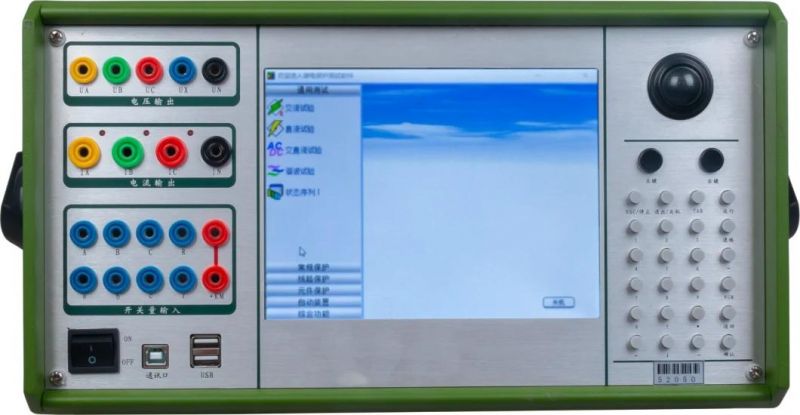

XHJB612 relay protection calibration tester can test voltage/current value, return voltage/current value, operation time, return time and reclosing relay action value and return value of various electromagnetic, rectification and transistor integrated circuit relays. Test, check, charge and discharge time, action time, etc. It is also possible to test the starting current of the GL type and LL type inverse time relay, the operating current of the sensing element, the operating current of the quick-disconnecting element, and the operating time.



Main Feature

1. Real-time display of contact status,

2. Independent button conversion measurement position, easy and convenient on-site operation.

3. It has a passive output and can be flexibly used for auxiliary control of the test process.

Main Specifications



1. AC current: 0~5A, 0~50A, 0~150A

2. DC current: 0 ~ 20A;

3. AC voltage: 0 ~ 250V, I ≤ 5A, 50Hz;

4. DC voltage: 0 ~ 250V, I ≤ 5A, 50Hz, 0 ~ 12V, I ≤ 500mA;

5. Auxiliary power supply: fixed 220V, I≤4A;

6. Ambient temperature: -40 ° C ~ +50 ° C; humidity: <90% RH;

7. Output power: 1.5KW

8. Box size (length × width × height):

9. Weight: 18kg
