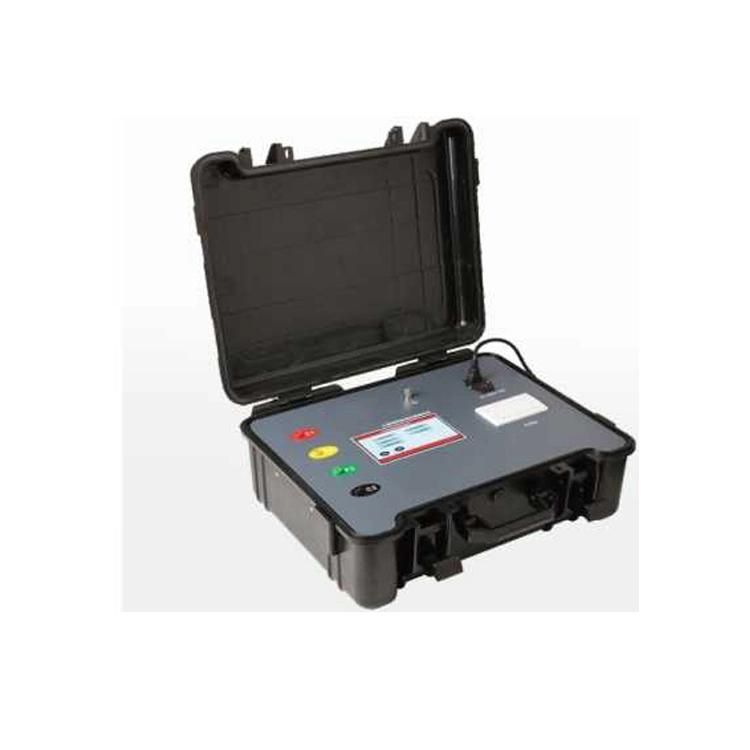

XHEP701A Earth resistance Tester



Product Introduction

XHEP701A grounding grid resistance tester can measure substation grounding network (4Ω), water and thermal power plant, microwave station (10Ω), lightning rod (10Ω) multi-purpose machine, adopts new frequency conversion AC power supply, and adopts computer processing control and signal processing measures. It solves the anti-interference problem in the test process very well, simplifies the test operation process, improves the accuracy and accuracy of the test results, and greatly reduces the labor intensity and test cost of the test personnel.





Main Feature

1. The measured power frequency equivalence is good. The test current waveform is a sine wave, and the frequency is only 5 Hz from the power frequency, and is measured using two frequencies of 45 Hz and 55 Hz.

2. Strong anti-interference ability. The instrument adopts the different frequency method to measure, and with the modern software and hardware filtering technology, the instrument has high anti-interference performance, and the test data is stable and reliable.

3. High precision. The basic error is only 0.005 Ω and can be used to measure large ground grids with low ground impedance.

4. Powerful. It can measure current pile, grounding resistance of voltage pile, grounding resistance of grounding grid, on-resistance and soil resistivity.

5. easy to use. Full Chinese menu operation, directly showing the measurement results.

6. The wiring is labor intensive and does not require a large current line.

Main Specifications

7. Impedance measurement range: 0 ~ 5000Ω Resolution: 0.001mΩ

8. Measurement error: ± (reading × 2% + 0.005 Ω)

9. Voltage measurement range: 0 ~ 450V Maximum resolution: 0.001V

10.  Measurement error: ± (reading × 2% + 0.005V)

11. Test current waveform: sine wave

12. Test current frequency: 45, 50, 55, 60, 65Hz single frequency             45/55Hz, 55/65Hz, 47.5/52.5Hz automatic double conversion

13. Output current: 1, 2, 3, 4, 5A Maximum output voltage: 450V

14. Measuring line requirements: Current line copper core cross-sectional area ≥1.5mm2

15. Voltage line copper core cross-sectional area ≥1.0mm2

16. Power supply: AC180 ~ 270V, 50 / 60Hz

17. Dimensions: 355 × 335 × 340 mm Instrument weight: 18kg
