• Model NO.：XHBB128B
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHBB128B Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

Product Introduction

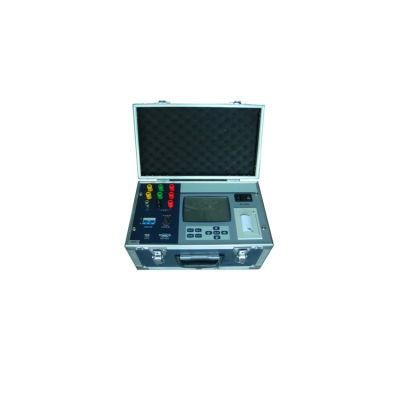

General During the processing of the semi-finished products and the finished products in transformer production, the newly installation transformer before using, and according to IEC and national standard, the turns ratio or voltage ratio should be tested in the circle rate. Can check the correctness of the transformer turn ratio, tap-changer condition, whether short circuit between turs and whether the transformer can parallel run. Traditional bridge method is complicated, and can't read the data directly, and you have to make conversion, the testing results are data of one phase. Turns ratio tester of XHBB128B type overcomes the shortcomings of traditional bridge method. The monitor adopts big screen with lattice liquid crystal, which has the function of indicating by menu, operating easily and directly. It finishes test of three-phase voltage ratio or turns ratio once, fast testing and high precision

Functions Features: (1) Instrument internal adopt precision three-phase inverter measurement power supply instead of the single-phase mains supply as measuring voltage, which eliminate the harmonic effect of the main voltage , more accuracy. If the working power supply is generator and its without any effect. (2)using three-phase output voltage, improve the test speed, can measure the angle between the phases, automatically identify the transformer wiring group 0-11.
(3)Suitable for various of transformers, with the function of testing the Z type transformer and angle phase. (4)Using precision three-phase inverter power supply, has the high and low voltage reverse connect protection and transformer inter-turns short circuit protection, tap-changer protection and output short circuit protection functions, increase the stability of instrument.
(5)After inputting the rated parameters, can automatic measure transformer turns ratio, error and tap-changer points, especially for asymmetric tap-changer points, also can accurately test the position of the transformer tap-changer, can measure up to 99 points of tap-changer (6)With 65K True Color Module LCD display, each operation step with English prompt, and the operation can be completed just by prompt and no need of manual.(7).With Micro-printer ,USB and RS232 interface. (8)With sealed water-proof and shock-proof sturdy hand-case, be suitable for
field testing.



Panel instruction
(1)Screen: 65K True Color matrix LCD, digital adjust the backlight, display the operation menu and the test results.

(2)High voltage terminals: Connect instrument terminals: The yellow, green,red and black terminals with the corresponding A, B, C ,0 three phase of the tested transformer high-voltage side. (3)Low voltage terminals: Connect instrument terminal: The yellow, green, red and black with the corresponding a, b, c ,0 three phase of the tested transformer (4)AC 220V:Power supply input. (5)Printer: Print the testing results. (6)Direction key: Up, down, left, and right keys are used to select menus and modify options(7) OK: After selecting, makes sure of the function. (8)Back key: Press this button to stop the test or return to the previous state. (9) Earthed terminal. (10)RS232: Communication interface. (11)USB:USB Flash disk. (12)Test key:After the data is set, press and start testing. (13)Cancel:Stop measuring or return to the previous state.
