• Model NO.：GD-003
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：ISO9239-1 Flooring Radiant Panel
• Name：ISO9239-1 Flooring Radiant Panel
• Application I：Determine Burning Behaviour of Floorings
• Application II：Determine Flame Spread at a Heat Flux Level
• Test Standards：ISO9239-1, ISO9239-2, ASTM E648, ASTM E970,Nfpa253
• Heat Flux Level：25kw,M2
• Size：1900mm (W) X 750mm X (H) X 2120mm (D)
• Power Supply：220V, 50Hz
• Warranty：1 Year
• After Sale Service：Supply Installation and Commissioning Service
• Transport Package：Packed in Veneer Case
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. GD-003 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Na Item Name ISO9239-1 Flooring Radiant Panel Name ISO9239-1 Flooring Radiant Panel Application I Determine Burning Behaviour of Floorings Application II Determine Flame Spread at a Heat Flux Level Test Standards ISO9239-1, ISO9239-2, ASTM E648, ASTM E970,Nfpa253 Heat Flux Level 25kw/M2 Size 1900mm (W) X 750mm X (H) X 2120mm (D) Power Supply 220V, 50Hz Warranty 1 Year After Sale Service Supply Installation and Commissioning Service Transport Package Packed in Veneer Case Specification Refer to the specifications Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Set/Month

Product Description

ISO9239-1 Flooring Radiant Panel For Building MaterialIntroduction:
The ISO 9239 Radiant Flooring Panel test is the cornerstone of the flooring materials reaction to fire tests in the Euroclass system. The test measures the spread of flame of the sample, under thermal exposure, using a radiant heat ignition source. The thermal exposure is that of a fire growing in the room of origin that through a door opening, radiates onto the floorings in an adjacent room or corridor. The apparatus can also be used for tests to standards ASTM E648 and DIN 4102; Part 14.
Standard:

1. ISO 9239-1: Reaction to Fire Tests for Floorings - Part 1 : Determination of the Burning Behavior Using a Radiant Heat Source;
2. ISO 9239-2: Reaction to Fire Tests for Floorings - Part 2 : Determination of Flame Spread at a Heat Flux Level of 25kw/m2;
3. ASTM E 648 : Standard Test Method for Critical Radiant Flux of Floor-Covering Systems Using a Radiant Heat Energy Source;
4. ASTM E 970: Standard Test Method for Critical Radiant Flux of Exposed at Attic Floor Insulation Using a Radiant Heat Energy Source;
5. NFPA 253: Standard Method of Test for Critical Radiant Flux of Floor Covering Systems Using a Radiant Heat Energy Source (National Fire Codes, Vol.6);

Application:
Buliding Materials
Rail
Other
Automotive Interior

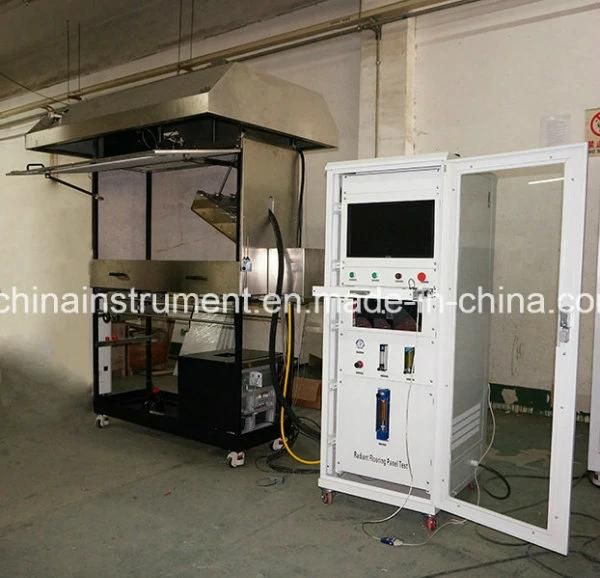

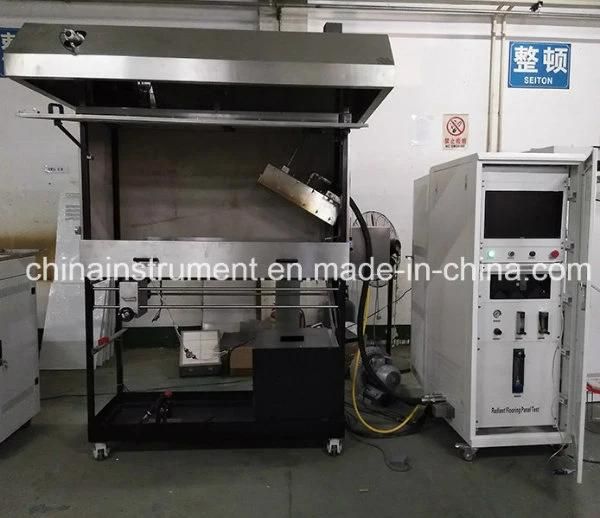

Product Show:
