• Model NO.：GDYJ-502
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：0-100kv Transformer Oil Breakdown Voltage Tester
• Other Name：Transformer Oil Bdv Testing Kit
• Function：Determine Breakdown Voltage of Transformer Oil
• Features：Internation Standards for Choice, Automatic
• Test Standards：IEC60156, ASTM D877, ASTM D1816, etc.
• Printing Function：Yes
• Data Updating Function：Yes
• Data Storage：100 Groups
• Power Supply：220V, 50Hz
• Warranty Period：1 Year
• Transport Package：Packed in Container
• Specification：70*40*55cm, 55kg
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GDYJ-502 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Na Item Name 0-100kv Transformer Oil Breakdown Voltage Tester Other Name Transformer Oil Bdv Testing Kit Function Determine Breakdown Voltage of Transformer Oil Features Internation Standards for Choice, Automatic Test Standards IEC60156, ASTM D877, ASTM D1816, etc. Printing Function Yes Data Updating Function Yes Data Storage 100 Groups Power Supply 220V, 50Hz Warranty Period 1 Year Transport Package Packed in Container Specification 70*40*55cm, 55kg Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

GDYJ-502 IEC60156 Transformer Oil 100kV High Voltage Breakdown Voltage Tester

Introduction:

1. GDYJ-502 0-100kv IEC60156 Transformer Oil 100kV High Voltage Breakdown Voltage Tester is designed according to GB-86 "Testing method of transformer oil dielectric strength";
2. GDYJ-502 0-100kv IEC60156 Transformer Oil 100kV High Voltage Breakdown Voltage Tester has large LCD display, micro-printer and can store 100 groups datas;
3. It is multi-functional, stable, and easy for operation.

Specifications:

No.	Item Name	IEC60156 Transformer Oil 100kV High Voltage Breakdown Voltage Tester
1	Output voltage	AC 0V~100KV
2	Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode	9
4	Stir time setting for user-defined mode	0~999s
5	Waiting time setting for user-defined mode	0~999s
6	Test error	3%RDG+0.3%FS
7	Display	256´128 LCD
8	Maximum storage capacity	100 groups of test data
9	Power supply	AC220V±10%, 50Hz/60Hz
10	Working environment	0-50ºC, ≤80%RH
11	Size	620 mm*430mm*330mm
12	Weight	41kg

  Functions:

1. Breakdown test of user-defined
2. Proof test
3. IEC60156/IS6792/BS5874 test
4. ASTM D1816 standard test
5. ASTM D877 standard test
6. 5 minutes standard test
7. Manual test
8. Calibration interface for customers
9. Uploading data to PC and making word report automatically.
10. Result print

Packing List:

No.	Name	Quantity
1	GDYJ-502 IEC60156 Transformer Oil 100kV High Voltage Breakdown Voltage Tester	1 set
2	Power line	1 pc
3	Grounding line	1 pc
4	Test vessel	1 pc
5	Electrodes Mushroom, Flat and Spherical type	3 pairs
6	Feeler gauge 1mm,2mm,2.5mm,4mm	4 pcs
7	Insulation cover	1 pair
8	Stirrer	1 pair
9	Insulation glue	1 pc
10	High voltage column	1 pair
11	USB-RS232 connection line	1 pc
12	Thermal print paper	2 rolls
13	Fuse	5 pcs
14	Instruction manual	1 pc
15	disk	1 pc
16	Test report	1 pc
17	Pass certificate	1 pc

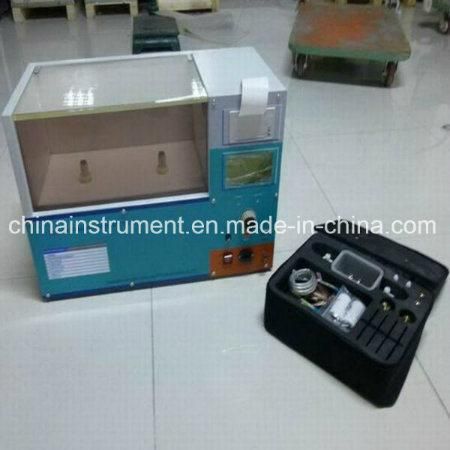

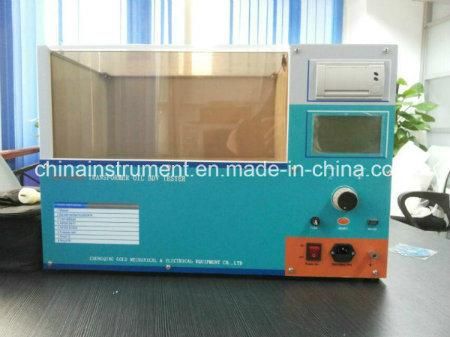

Real Pictures:



Our Service:
Presell Service:


After-sale Service:
