0-100kv Transformer Oil Bdv Testing Kit, 80kv Insulating Oil Bdv Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Item Name:0-100kv Transformer Oil Bdv Tester
- Other Name:80kv Transformer Oil Bdv Testing Kit
- Function:Determine Bdv of Transformer Oil
- Features:Internation Standards for Choice, Automatic
- Test Standards:IEC60156, ASTM D877, ASTM D1816, etc.
- Printing Function:Yes
Base Info
- Model NO.:GDYJ-502A
- Data Updating Function:Yes
- Data Storage:100 Groups
- Power Supply:220V, 50Hz
- Warranty Period:1 Year
- Transport Package:Packed in Container
- Specification:70*40*55cm, 55kg
- Trademark:GOLD
- Origin:Chongqing, China
- HS Code:9031809090
- Production Capacity:200 Sets,Month
Description
Basic Info.
Model NO. GDYJ-502A Data Updating Function Yes Data Storage 100 Groups Power Supply 220V, 50Hz Warranty Period 1 Year Transport Package Packed in Container Specification 70*40*55cm, 55kg Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 200 Sets/MonthProduct Description
GDYJ-502A 0-100kv Transformer Oil Bdv Testing Kit, 80kv Insulating Oil Bdv TesterIntroduction:
It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
It has large LCD display, all the selection can be done by touch panel with color LCD;
It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
It is multi-functional, stable, and easy for operation
Specifications:
No. | Parameters | Specifications |
1 | Output voltage | AC 0V~80KV |
2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 | Max. test times | 9 |
4 | Stir time | 0~999s |
5 | Wait time | 0~999s |
6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
7 | Resolution | 0.1KV |
8 | Temperature measurement range | 0°C to 70°C, or better |
9 | Temperature resolution | 1°C, or better |
10 | Data storage | 100 groups |
11 | Weight | 38kg |
12 | Size | 550 mm*500mm*580mm |
13 | Power supply | AC220V, 50Hz |
14 | Working environment | Room temperature to 45°C, humidity<85% |

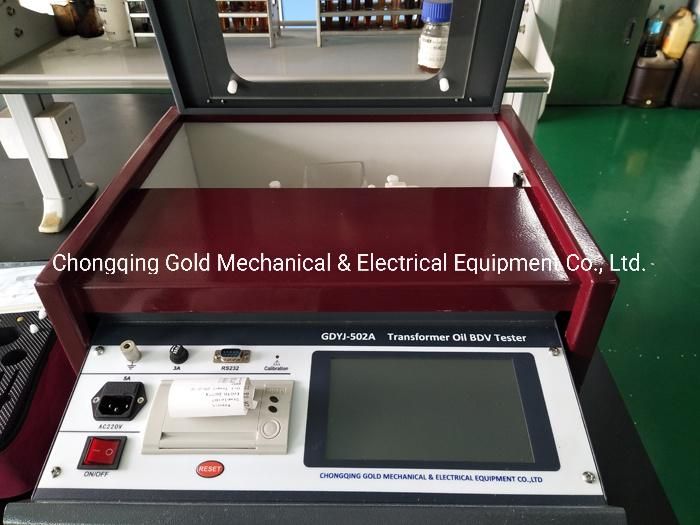

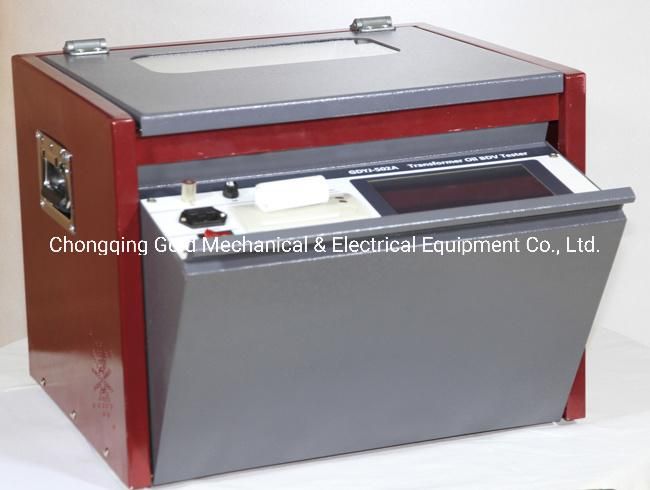

Real Pictures:
