• Model NO.：GD-0719
• Testing Sample Quantity：1 Piece
• Maintaining Sample Quantity：3 Piece
• Roller Motion Mode：Test Wheeled
• Product Name：Gd-0719 Automatic Wheel Tracking Device Price
• Transport Package：Wooden Case
• Specification：Wheel-Track Tester
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9013809000
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. GD-0719 Testing Sample Quantity 1 Piece Maintaining Sample Quantity 3 Piece Roller Motion Mode Test Wheeled Product Name Gd-0719 Automatic Wheel Tracking Device Price Transport Package Wooden Case Specification Wheel-Track Tester Trademark GOLD Origin Chongqing HS Code 9013809000 Production Capacity 10 Sets/ Month

Product Description

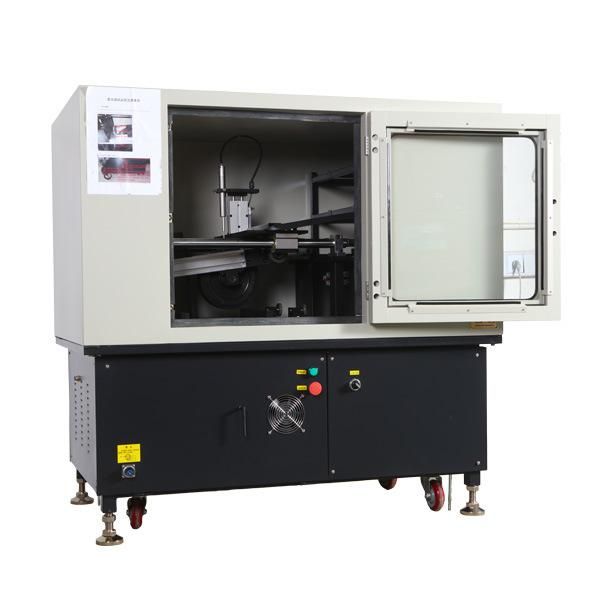

GD-0719 Automatic Wheel Tracking Device Price


Introduction:

GD-0719 Automatic Wheel-Track Tester is designed and made as per industrial standard T0719-2011 Wheel Track Test for Bituminous Materials in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. Wheel Tracking Device is used to determine the wheel track resistance property of bituminous mixtures under high temperature condition(Immersed in water or not immersed in water),determine the high temperature stability of the bituminous mixtures at site.



I. Main technical features:

1. Wheel Tracking Device with the floor type,adopts PC control technology,automatic temperature control during testing process,self-clocking,real-time displaying the displacement of wheel track,and self-recording the displacement curve,printing out the report.

2.Displaying the variation curves of time and displacement,time and temperature during the test,it can supply the practical evidence for the research and development institutions to study the characteristics of bituminous mixtures wheel-track.

3.Wheel-Track Tester can do the test at the temperature range 45ºC~85ºC,wheel-pressure at 0.7MPa,standard test period: 60 mins.

4. Wheel-Track Tester equips an absolute temperature sensor,uses the PWM adjusted method to control the temperature,the temperature with high stability,no overswing and no temperature drift during long time test.

5.Adopting high precision A/D(16 bits),D/A(16bits) modules to ensure that displacement measurement and temperature control are accuracy and resolution ratio.The constant temperature tank use the external circular heating method to make sure the uniform temperature.



II. Main technical specifications:

1. Standards: industrial standard T0719-2011 in JTG E20-2011

2. Grinding rate: (42±1)times/min(one-way)

3. Test wheel movement distance: 230mm±10mm

4. Rubber hardness: 78±2 at 60ºC,international standard.

5. Loading device: 0.7MPa±0.05Mpa when CPRESS is at 60ºC,optional 0.8,0.9Mpa

6. Displacement measuring range: 0mm~30mm

7. Displacement measuring accuracy: <0.01mm

8. Wheel track test time: 60 minutes~240 minutes. 60 minutes is standard

9.Temperature control for constant temperature chamber: Ambient temp.~80ºC,precision ±0.5ºC.

1) Overall machine dimension: 1320mm×750mm×1400mm(L*W*H)

2) Gross weight: 250kg

3) Sample dimension: 300mm*300mm*50mm(standard),can test the thickness of samples from 30 to 100mm .

10.Work mode: no submerging test

11.Temperature measurement accuracy: ±0.1ºC

12.Environment control accuracy: ±0.5ºC

13.Sample temperature control accuracy: ±0.5ºC

14.Temperature measurement channels: 1 channel

15.Testing sample quantity: 1 piece

16.Maintaining sample quantity: 3 piece

17. Roller motion mode: Test wheeled

18. Power supply

(1)Three-phase supply: AC380V, 50Hz, 3Kw, three-phase four-wire system, with zero line.

(2)Single-phase supply: AC220V, 50Hz, 5A, single-phase three-wire, with ground line.
