8 Channel Battery Analyzer (0.02 -10 mA, upto 5V) W for Small Coin Cells and Cylindrical Batteries

Zhengzhou CY Scientific Instrument Co., Ltd.
  • Type：8 Channel Battery Analyzer
  • Test Region：Current
  • Application：Coin Cells and Cylindrical Batteries
  • Customized：Non-Customized
  • Item：Coin Cells and Cylindrical Batteries
  • Transport Package：Wooden Case

Base Info

  • Model NO.：BST8-MA
  • Specification：coin cells and cylindrical batteries
  • Trademark：CYKY
  • Origin：China
  • Production Capacity：500 Sets Per Month

Description

Electricity requirement110V AC or 220V AC selectable for universal usePower Consumption30WCharge & Discharge
Current

  • Range: 0.02 mA - 10mA
  • Accuracy: ±(0.05% of reading + 0.1% of range)
Charge & Discharge
Voltage
  • Range: 0.5 - 5V programmable
  • Accuracy: ±(0.05% of reading + 0.1% of range)
Data register conditionsTime interval: 1 - 900sMax. measurement cycles 9999 cyclesProduct Dimensions245mm(L) x 197mm(W) x 60mm(H)Channels
  • Eight independent programmable channels
  • Each channel can set different working modes and functions independently
Battery Holders

  • Two types of battery holders are included in the BST8-WA Standard package:

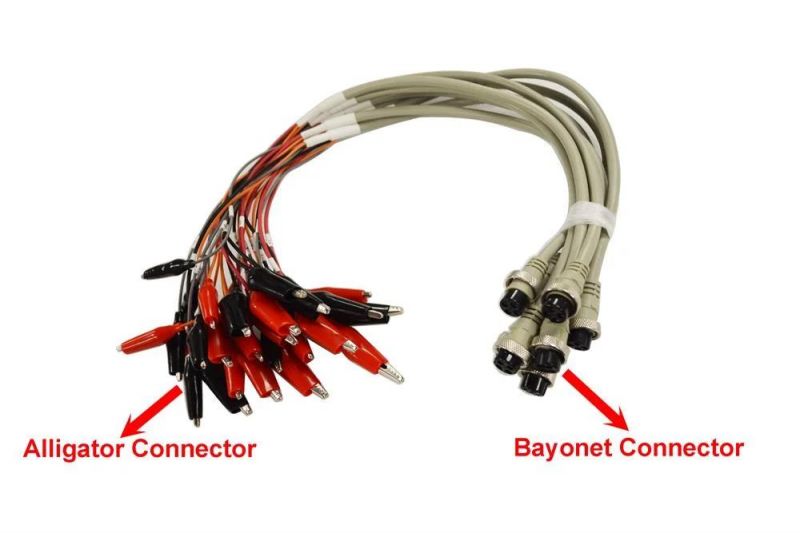

    • 8 alligator clips with cable for universal connecting (especially for pouch cell, pls click the picture 1-2 below )
    • 8 spring load holders with adjustable height for measuring cylinder or coin cell up to 70mm(H)
  • Optional holder: 8-Channel coin cell testing board for measuring coin cells easily
Programs & Software
  • The software (TC5.3) with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries
  • Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, etc
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc
  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently
  • During the test, the software will provide instructions and warnings for assistance
  • The calibration software can be used to calibrate the analyzer
  • MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file.
Test Reports and Curves for analysis
  • Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times-charge/discharge capacity curve, loops times-charge/ discharge efficiency curve, etc)
  • Data reports are created by software. User can easily compare the performance of the batteries tested in channels both visually and statistically
Protection and Auto-recover If the power failure occurs during testing, the system will shutdown all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.
Laptop Computer
  • Brand new laptop with MS Window 8, MS Excel 2013 30 days free trial is included and latest version testing software are installed and calibrated for immediate use
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC
  • Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data.
Compliance
  • CE Certified
  • MET, TUV, CSA, UL certification are available upon request at extra cos
WarrantyTwo Year limited warranty with lifetime support for the battery analyzer. (Note: we does not carry warranty for the Laptops. In case service is needed for the laptops, please contact laptop manufacturer directly for warranty/no warranty service.)Application Notes
  • New buyers must buy the software-installed laptop to avoid trouble from installation. If you like to run multiple battery analyzers on one Laptop, you can just buy multiple analyzers with one laptop which are offered at a discounted price.
  • $500 will be deducted if one analyzer is purchased without a basic laptop.
  • The customer can easily combine up to 20 battery analyzers (0.002-1mA, 0.1-10mA, 6mA-3000mA) by using normal Ethernet cable connector via one computer.
  • You may order we movable rack to organize the battery analyzers
Net Weight11.5 kg (26 lbs)Shipping Weight18 kg (40 lbs)Shipping Dimensions610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14") reference picture of the 8 channel battery analyzer:

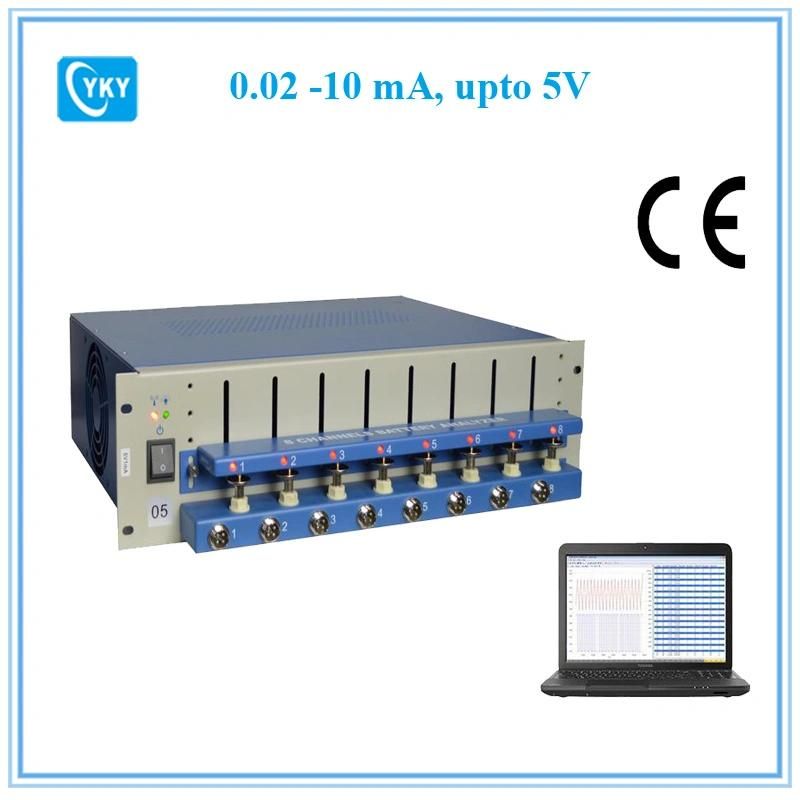

8 Channel Battery Analyzer (0.02 -10 mA, upto 5V) W for Small Coin Cells and Cylindrical Batteries
