Drag Type CPT Machine Hydraulic Static Cone Penetrometer 15t and 20t
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Export Standard Wooden Case
- Specification：2.5x1.6x1.7m
- Trademark：C-TECH
- Origin：China Mainland
Base Info
- Model NO.：TPC-15T,TPC-20T
- HS Code：90248000
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. TPC-15T/TPC-20T HS Code 90248000 Production Capacity 20 Sets/MonthProduct Description
Drag type CPT machine hydraulic static cone penetrometer 15t and 20tStatic cone penetration test is internationally recognized as a standard field test to collect data about bearing capacity and frictional resistance of soil.

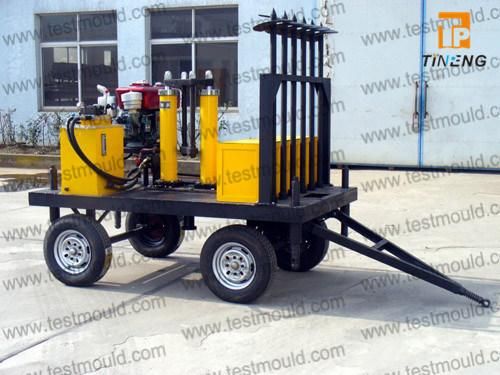

Drag type CPT Machine (TPC-15T, TPC-20T) It has two axles each of which assembles two tyres under
the chassis. At each corner of the chassis, there is one mechanical support leg, namely total four legs, to lift the chassis.

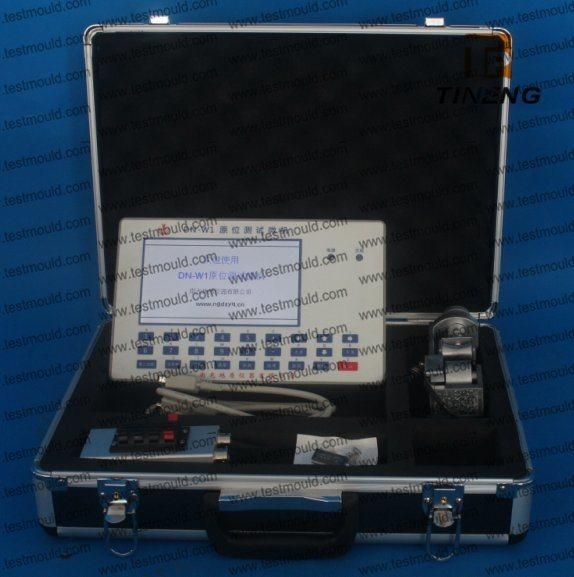

Suitable data logger
Standard configuration table
| Model | Description | Unit | Qty. |
| Operation part | |||
| TPCL-001A | Operation system | set | 1 |
| TPCL-001D | Trailer | nos | 1 |
| Penetration part | |||
| TPCL-002A | Penetration cylinder | set | 1 |
| TPCL-002B | Penetration rod (Φ40) | nos | 1 |
| Anchoring part | |||
| TPCL-003A | Hydraulic anchor machine | set | 1 |
| TPCL-003B | Ground anchor | set | 4 |
| TPCL-003F | Anchor plate | nos | 4 |
| TPCL-003H | Anchor bar | nos | 4 |
| Test part | |||
| DN-1W | Data acquisition system | set | 1 |
| GME-500(optional) | Data acquisition system | set | 1 |
| Accessories | |||
| TPCL-004A | Fixing block | nos | 2 |
| TPCL-004B | Reducer union | nos | 1 |
| TPCL-004C | Guide sleeve (Φ40) | set | 1 |
| TPCL-004D | Tool | set | 1 |
| TPCL-004E | Gasket | set | 1 |
| TPCL-004F | 8 core cable | m | 40 |
