Schimidt Concrete Rebound Test Hammer Ht-225A

Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.
  • Transport Package：Plastic or Wooden Box
  • Specification：2kg
  • Trademark：C-TECH
  • Origin：China Mainland

Base Info

  • Model NO.：HT-225A
  • HS Code：90248000

Description

Basic Info.

Model NO. HT-225A HS Code 90248000

Product Description

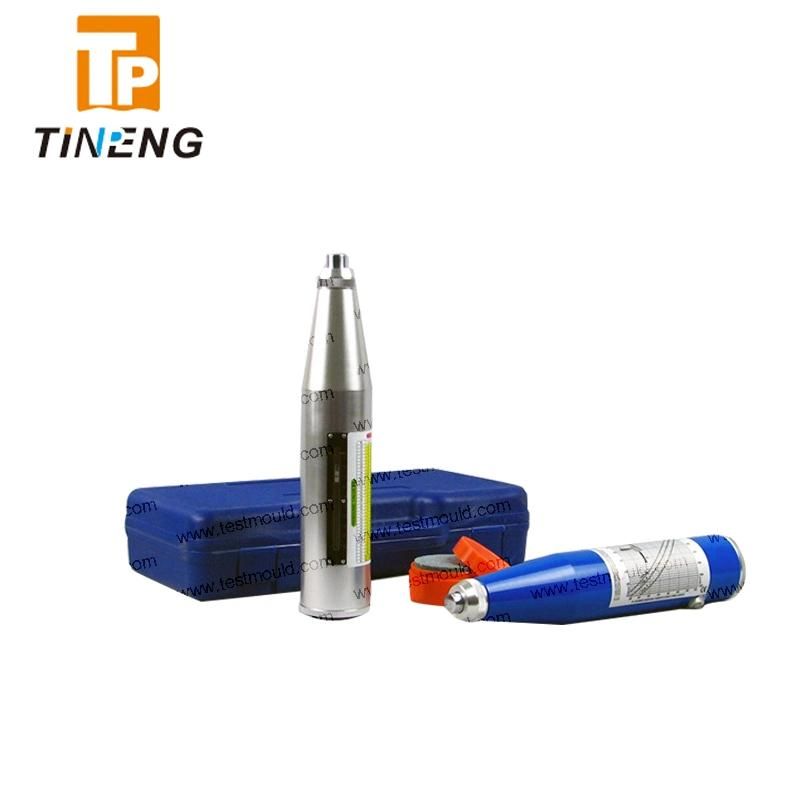

Schmidt concrete rebound test hammer

Standard: AS TM C 805, BS 1881:202, NF P18-417, DIN 1048 and UNI 9189

    For the non-destructive testing of the surface of hardened concrete in order to evaluate the strength in various parts of a structure.
    The concrete hammer is supplied complete with carrying case, grinding stone, and instruction manual.

Schimidt Concrete Rebound Test Hammer Ht-225A


Specifications
Model HT-225A
Measuring strength ranges: 10-60 MPa
Impact energy: 2.207 Nm
Strike hammer stroke: 75 mm
Spherical radius of strike rod: 25 mm±1 mm
The rebound values calibrated on steel anvil: 80±2
Dimensions: Dia. 54×278 mm
Gross weight approx: 1.6 Kg
