• Model NO.：DSJ-3
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. DSJ-3 HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

Direct shear test machine

STANDARD: ASTM D3080, BS 1377:7, AASHTO T236 NF P094071-1/2

To determine the shearing strength of the soil using the direct shear apparatus.
In many engineering problems such as design of foundation, retaining walls, slab bridges, pipes, sheet piling, the value of the angle of internal friction and cohesion of the soil involved are required for the design. Direct shear test is used to predict these parameters quickly. The laboratory report cover the laboratory procedures for determining
these values for cohesionless soils.
Strain controlled direct shear machine consists of shear box, soil container, loading unit, proving ring, dial gauge to
measure shear deformation and volume changes. A two piece square shear box is one type of soil container used.
A proving ring is used to indicate the shear load taken by the soil initiated in the shearing plane.

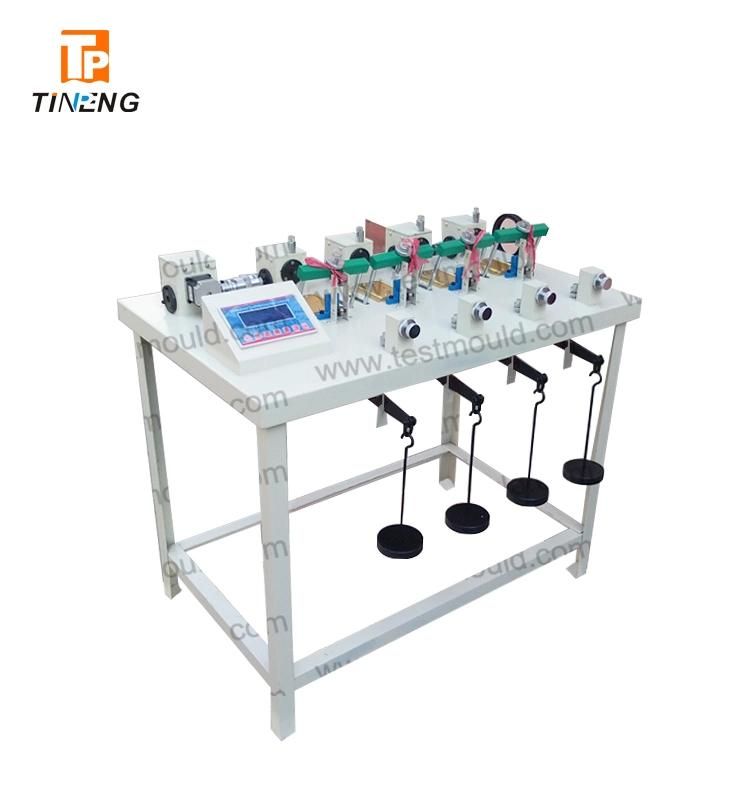

DSJ-3(quadruplet) Electric shear test machine
Vertical load: 100KPa, 200KPa, 300KPa 400KPa
Lever ratio: 1:12
Shear box quatity: 4
Level shear force: Max. 1.2KN
Sample area(cm): 30 x 2 H
Shear rate(mm/min): 2.4, 0.8, 0.1, 0.02
Power: <100W
Power source: 220V±10%, 50Hz
Dimension(mm): 680 x 740 x 1050(LxWxH)
Weight: 200 Kg
