• Model NO.：GD-ISO1716
• Heat Repeatability Error：≤0.2%
• Heat Capacity of The Instrument：About 10000j , K
• Ambient Temperature：(10 ~ 35) ºC, Humidity ≤80%
• Maximum Power：0.5kw
• Oxygen Bomb Pressure Range：0.5 ~ 3.5MPa, No Leakage. The Bomb Pressure 21MPa
• Bomb Capacity：(300 ± 50) Ml
• Warranty：12 Months
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-ISO1716 Heat Repeatability Error ≤0.2% Heat Capacity of The Instrument About 10000j / K Ambient Temperature (10 ~ 35) ºC, Humidity ≤80% Maximum Power 0.5kw Oxygen Bomb Pressure Range 0.5 ~ 3.5MPa, No Leakage. The Bomb Pressure 21MPa Bomb Capacity (300 ± 50) Ml Warranty 12 Months Transport Package Plywood Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

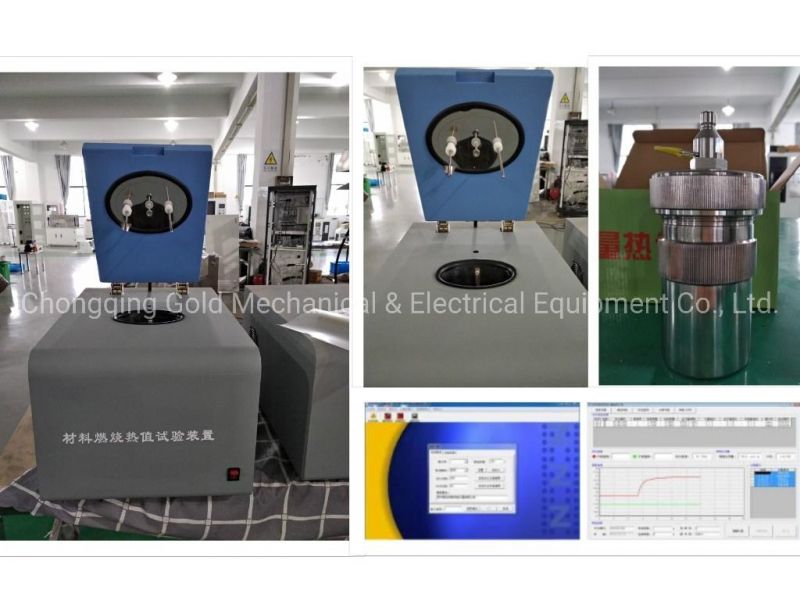

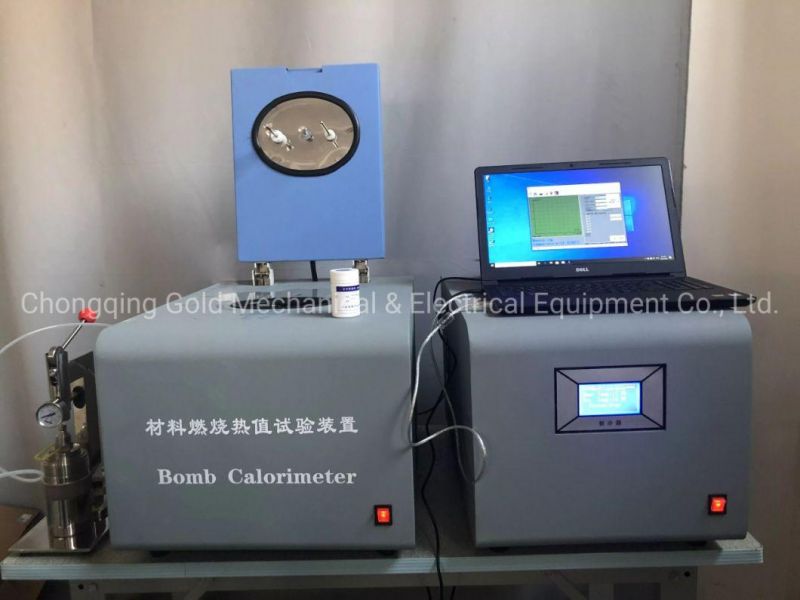

Heat of Combustion Tester for Building Material

Introduction:

Heat of combustion of materials is important characterize parameters to calculated building materials release heat and fire basic data.The bomb calorimeter is designed according to ISO 1716-2002.



Standard:

  • ISO 1716-2002

  •GB/T 14402-2007

  •GB/T8624-2012



Feature:

1, The apparatus including calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software;

Crucible made of stainless steel;

 2, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;

 3, Ignition wire break is the detection and automatic ignition.

 4, The test procedure automatically turn off.

5, Test abnormalities has a sound alarm.

6, Computer control system:

7, Control box with USB / RS232 serial port with an external brand desktop or laptop operating control; High degree of automation, test procedure safe and reliable, easy to operate;



Specification:

Bomb capacity	(300 ± 50) mL.
Oxygen bomb pressure range	0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa.
Timer	accuracy of 0.5s;
Maximum power	0.5KW;
Ambient temperature	(10 ~ 35) ºC, humidity ≤80%;
Heat capacity of the instrument	about 10000J / K;
Heat repeatability error	≤0.2%;
Temperature range	(4.5-50) ºC;
Temperature detection	0.0001 ºC resolution, using the PT100 sensor;
Inner cylinder volume	2000ml; Oxygen bomb Sealing
Motor power	3W; stirring speed
Power supply voltage	AC220V ± 10% 50Hz
