• Model NO.：GDYJ-502A
• Wait Time：0~999s
• Temperature Measurement Range：0°c to 70°c, or Better
• Power Supply：AC220V, 50Hz,60Hz
• Transport Package：Plywood Case
• Specification：55KG
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. GDYJ-502A Wait Time 0~999s Temperature Measurement Range 0°c to 70°c, or Better Power Supply AC220V, 50Hz/60Hz Transport Package Plywood Case Specification 55KG Trademark GOLD Origin Chongqing, China HS Code 9030849000 Production Capacity 500 Sets/Month

Product Description

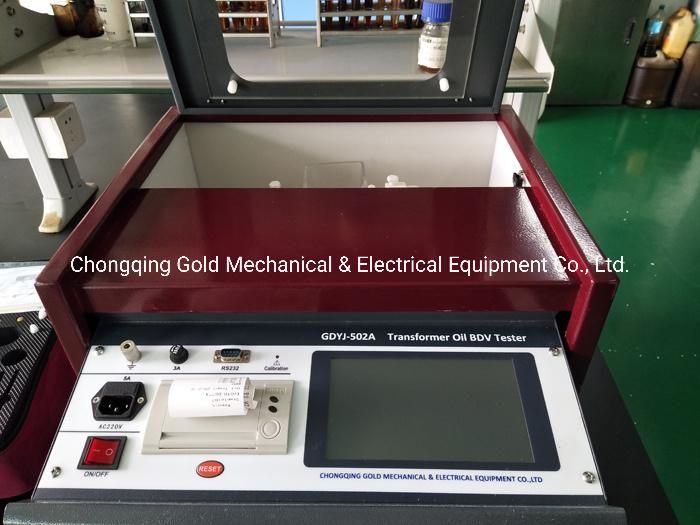

80KV 100KV Transformer Oil Temperature Measurement Insulating Oil BDV Dielectric Withstand Voltage Tester





Introduction:

• It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;

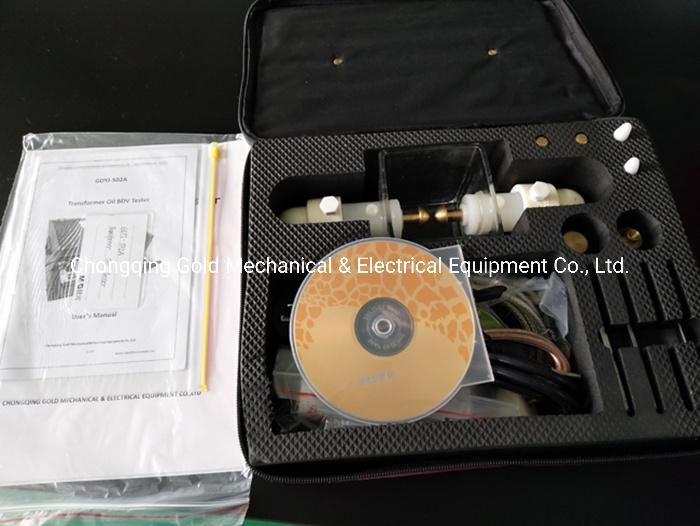

• The oil test vessel with temperature measurement unit, so it can detect oil temperature.

• With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;

• It has large LCD display, all the selection can be done by touch panel with color LCD;

• It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;

• It is multi-functional, stable, and easy for operation

Specifications:

1	Output voltage	AC 0V~80KV
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm*500mm*580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%

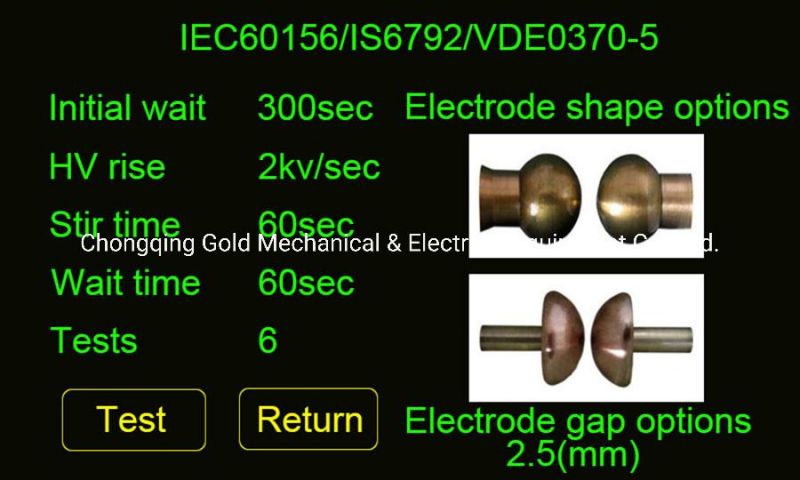

IEC 60156 Test

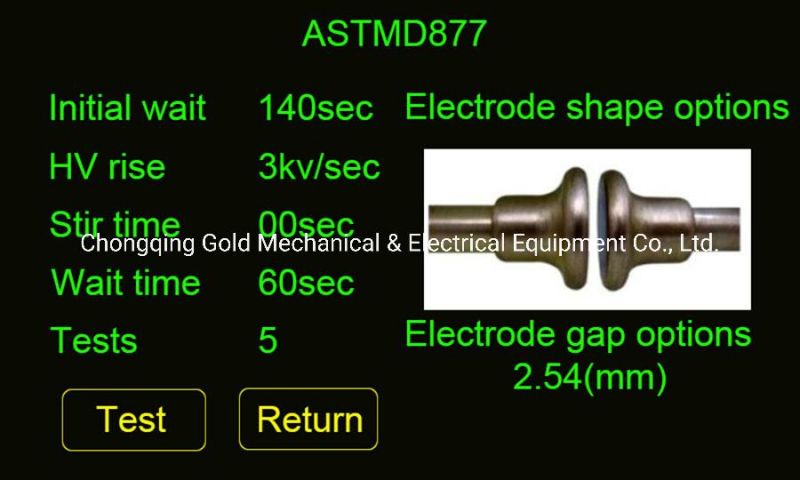

ASTM D877

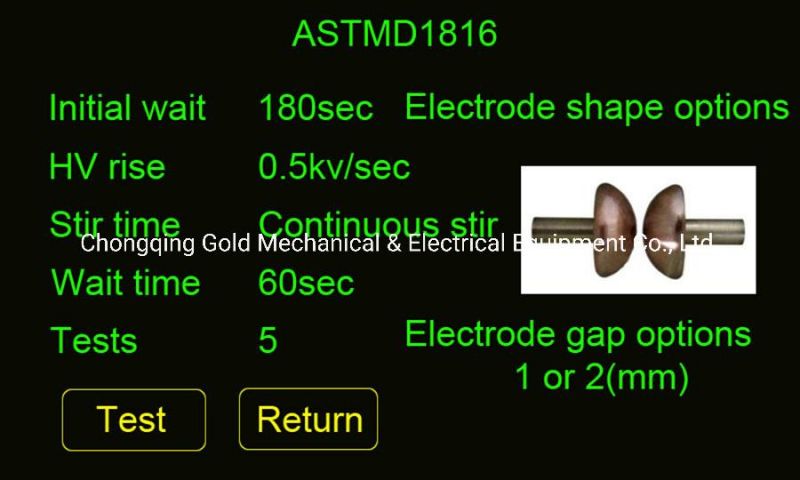

ASTM D1816

Customer Feedback


Our Company


Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China
Our main products are Transformer TTR Tester, transformer winding resistance meter,tan delta tester,CT PT Analyzer,relay protection tester,hipot tester,transformer oil purifier and so on.
Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.

Certificate


Exhibition
