• Model NO.：FS2150 Sales Kit
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC110V
• Oil Cylinder Position：No
• Resolution：1%
• IR Peak Wavelength：1000nm-1700nm
• Power Supply：AC220V, AC110V, AC380V
• Accuracy：+,-2%
• Packing Size：450mm *350mm *180mm(L*W*H)
• Usage：Solar Film Vlt, IR, UV Testing
• Name：Solar Film Transmission Meter
• Measure Range：0-19999uw,Cm2
• Item：Fs2150 Sales Kit
• UV Peak Wavelength：365nm, Range (260nm-380nm)
• Transport Package：One Piece One Small Box
• Specification：L*W: 430mm*320mm
• Trademark：ALILULA, New Vision
• Origin：Guangzhou, China
• HS Code：9030849000
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. FS2150 Sales Kit Control Manual Control Weight 0-100Kg Power Source AC110V Oil Cylinder Position No Resolution 1% IR Peak Wavelength 1000nm-1700nm Power Supply AC220V, AC110V, AC380V Accuracy +/-2% Packing Size 450mm *350mm *180mm(L*W*H) Usage Solar Film Vlt, IR, UV Testing Name Solar Film Transmission Meter Measure Range 0-19999uw/Cm2 Item Fs2150 Sales Kit UV Peak Wavelength 365nm, Range (260nm-380nm) Transport Package One Piece One Small Box Specification L*W: 430mm*320mm Trademark ALILULA, New Vision Origin Guangzhou, China HS Code 9030849000 Production Capacity 500000PCS/Month

Product Description

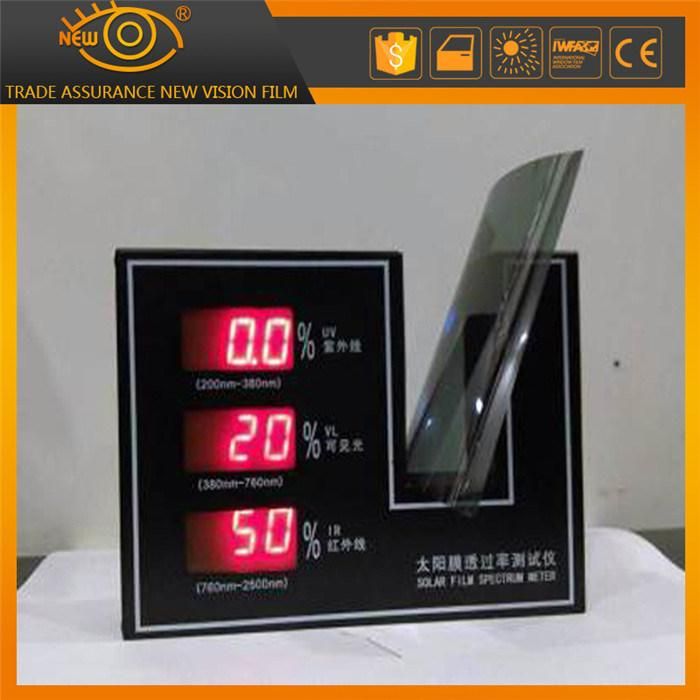

Sales Solar Film Transmission Meter Window Film Tester




FS2150 Sales Kit Infrared Power Meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, VL and IR transmission values. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need power on the meter and put the testing sample in the opening. The resulting performance data appear on the display.


1.Product Specification:

Product Item	Sales Solar Film Transmission Meter Window Film Tester
Product Size	L*W: 430mm*320mm
Weight	0-100kg
Measure Range	0-19999uW/cm2
Resolution	1%
Accuracy	+/- (4 % FS+2dgt)  FS:full scale
UV peak wavelength	LS123A, 365nm, range (260nm-380nm)
IR peak wavelength	LS122A, 1000nm-1700nm
Power supply	AC220V, AC110V, AC380V

1. showcase                1 pcs  ( L*W:430mm*320mm )
2. 150W infrared lamp      1 pcs
3. UV Flashlight            1 pcs
4. Glass radiometer         1 pcs
5. LS122A                  1 pcs
6. LS123A                  1 pcs
7. LS127                   1 pcs
8. CARTON                 1 pcs
P.S: From now on, buy a full set of sales kit can get a small windshild glass free


2.Operation:
1).Power on: When FS2150 Sales Kit is off, press the "ON/Hold" key.

2).Power off: Press "ON/Hold" key and hold for longer than 3 seconds, FS2150 Sales Kit will be powered off.

3).Auto off: No key is pressed in 3 minutes, and then FS2150 Sales Kit will power off automatically.

4).Manual hold: If "ON/Hold" key is short pressed during measure status, transmission value will hold on the LCD, "Hold" symbol is displayed on the LCD.Press the "NO/Hold" key again will
release the "Hold" mode. When backing is off, press the "NO/Hold" key turn on the backlight.

5).Measurement: When the meter displays 100% for each value, insert the testing sample in the
" OPENING", VL, UV and IR transmission value will display simultaneously.

3.Feature:
1). UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in
ONE device.

2). Small size, portable product for transmission value measurement.

3). Simple operation, putting the testing sample in the "OPENING", UV, Visible and Infrared transmission values of the sample will simultaneously display.

4). Using for window film, solar film and other transparence material testing. Test any sample thickness up to 8mm.

4.Note:
1). When battery symbol is empty and flash, pls replace the battery.
2). Keep the " OPENING" is empty before turn on FS2150 Sales Kit. Otherwise FS2150 Sales Kit will display testing interface, turn off and empty the " OPENING" and turn on again.
3).+/-2% Accuracy is for Colorless and transparent material, for colorful or optical coating product
ect, it will be low accuracy.
4). When not use for a long time(e.g several months), please take the battery out.
5). Avoid contact with corrosive agents and prevent from high temperature and high humidity environment.

5.Service:
1). The meter has one-year warranty. If the meter works abnormally, please send the whole meter to the company for maintenance.
2). Provide users with spare parts and lifelong maintenance service.
3). Provide the users with the meter inspection service for free.
4). Free technical support for long term.

6.Welcome to visit our company

GuangDong New Vision Film Co.,Ltd. is a professional manufacturer of car tint film,building film,safety film ect. Our Company is in Guangzhou,factory in Jiangmen city.We offer high
quality products to our customers from all over the world in competitive price.


7.Certification
We have passed SGS, CE, ROHS, ISO etc test, the products are deserving of your try.
