• Model NO.：STM-8
• Loading Method：No
• Display：Needle
• Control：Digital Display
• Weight：135kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stm-8 Digital Marshall Stability Tester(LCD)
• Complies to：ASTM D1559
• Capacity：0-50kn Precision:1%
• Resolution：0.1kn, 0.01kn
• Twin Displacement Structure, Displacemen：0.01mm
• Environment Temperature：-10c-40c
• Test Speed：50.8mm,Minute
• Supplied with One Breaking Head, Diamete：101.6mm or 152.4mm
• Transport Package：Wooden Case
• Specification：0.45CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STM-8 Loading Method No Display Needle Control Digital Display Weight 135kg Power Source AC220V Oil Cylinder Position No Product Name Stm-8 Digital Marshall Stability Tester(LCD) Complies to ASTM D1559 Capacity 0-50kn Precision:1% Resolution 0.1kn, 0.01kn Twin Displacement Structure, Displacemen 0.01mm Environment Temperature -10c-40c Test Speed 50.8mm/Minute Supplied with One Breaking Head, Diamete 101.6mm or 152.4mm Transport Package Wooden Case Specification 0.45CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

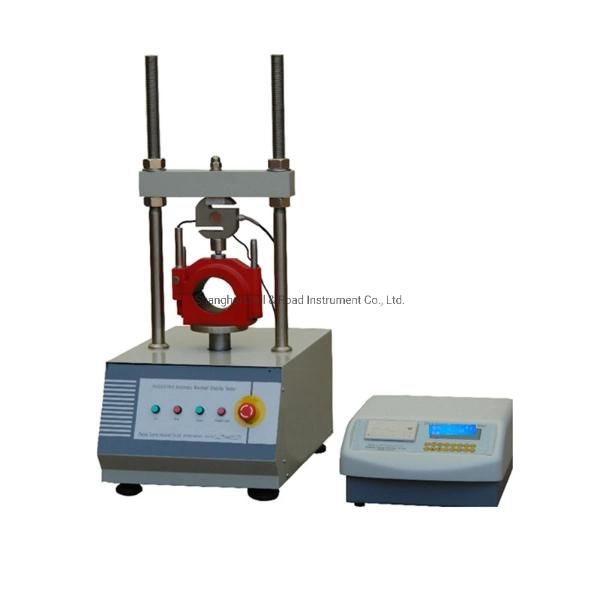

STM-8 Digital Marshall Stability Tester(LCD)



Standard: ASTM D1559, AASHTO T245, NF P98-251-2, CNR NO. 30, ASTM D5581 (4" DIA. SPECIMENS) EN 12697-34, 12697-23, 12967-12, D 6927

Features:
1.Adopt European design, equipped with one S  shape load cell and  displacement sensors, peak value automatically preserved and printing, the principal axis automatically fall after printing
2.Advance bench-mounted mechanical load frame with build-in digimatic display unit with ruggedly constructed to compass the strain loads involved with the test.This machine supplied with high accuracy load cell & displacement transducer 15 mm stroke ± 1% indipendent linearity.
3.Handle provided for manual operation during calibration. 4"diameter stability mould & mini printer with graf also available as optional accessories.

Parameters.


Model	STM-8
Capacity	0-50kN precision:1%
Resolution	0.1kN,0.01kN
Twin displacement structure, displacement resolution	0.01mm
Environment temperature	-10ºC-40ºC
Test speed	50.8mm/minute
Supplied with one breaking head	diameter 101.6mm or 152.4mm
