• Model NO.：WDS-100
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：3 Days After Get Payment
• Certification：ISO, SGS, Ce
• Standard：ASTM, Jin, GB
• Transport Package：Standard Export Packing
• Specification：750*510*1900mm
• Trademark：HST or OEM
• Origin：Jinan, Shandong, China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDS-100 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Delivery Time 3 Days After Get Payment Certification ISO, SGS, Ce Standard ASTM, Jin, GB Transport Package Standard Export Packing Specification 750*510*1900mm Trademark HST or OEM Origin Jinan, Shandong, China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

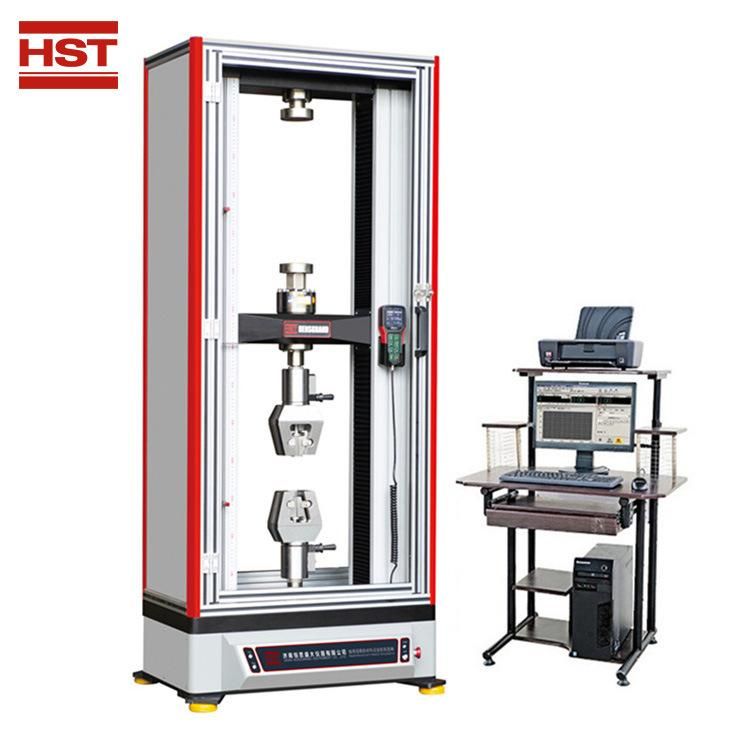

300KN aluminum alloys Universal Testing Instruments ce iso


 1.Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
 2.Standards:ASTM, ISO, DIN, GB and other international standards.
 3.Specifications:

Model	WDS-100
Max. Load(kN)	100
Structure	Four-column floor or desk model, (upper is compression and lower is tensile)
Cover	All aluminum alloy
Control method	Single chip control
Load accuracy	ISO 7500,Class1
Load range	2%~100%F·S
Displacement resolution	0.04um
Test speed(mm/min)	0.05-500
Tensile space(mm)	700(can be customized)
Compression space(mm)	700(can be customized)
Test width(mm)	550(can be customized)

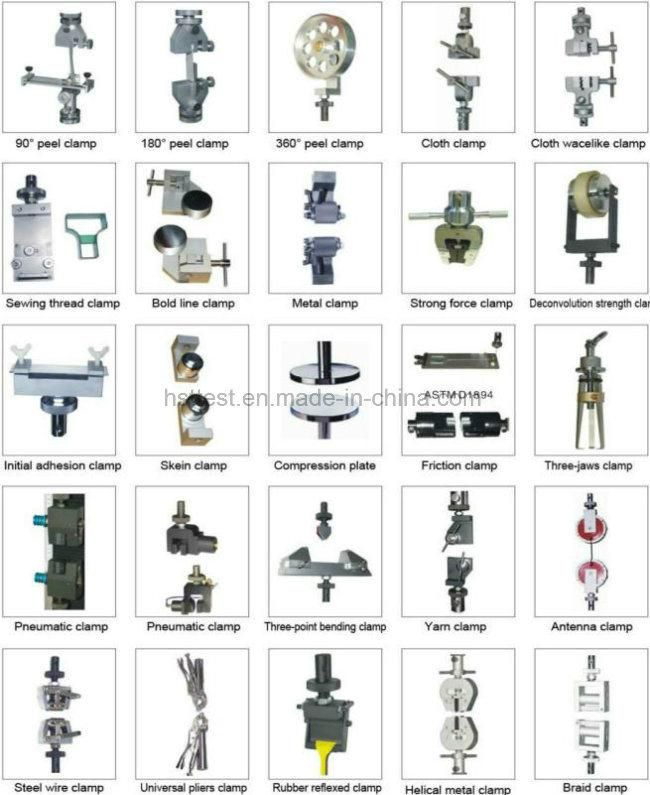

Fixtures for choice according to different material:
