• Model NO.：WDS-300
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC220V
• Delivery Time：3 Days After Get Payment
• Standard：ASTM JIS, DIN
• Cetification：Ce ISO SGS
• Transport Package：Standard Export Packing
• Specification：1000*650*2150mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：9000 Sets Per Year

Basic Info.

Model NO. WDS-300 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 500-1000Kg Power Source AC220V Delivery Time 3 Days After Get Payment Standard ASTM JIS, DIN Cetification Ce ISO SGS Transport Package Standard Export Packing Specification 1000*650*2150mm Trademark HST Origin China HS Code 9024101000 Production Capacity 9000 Sets Per Year

Product Description

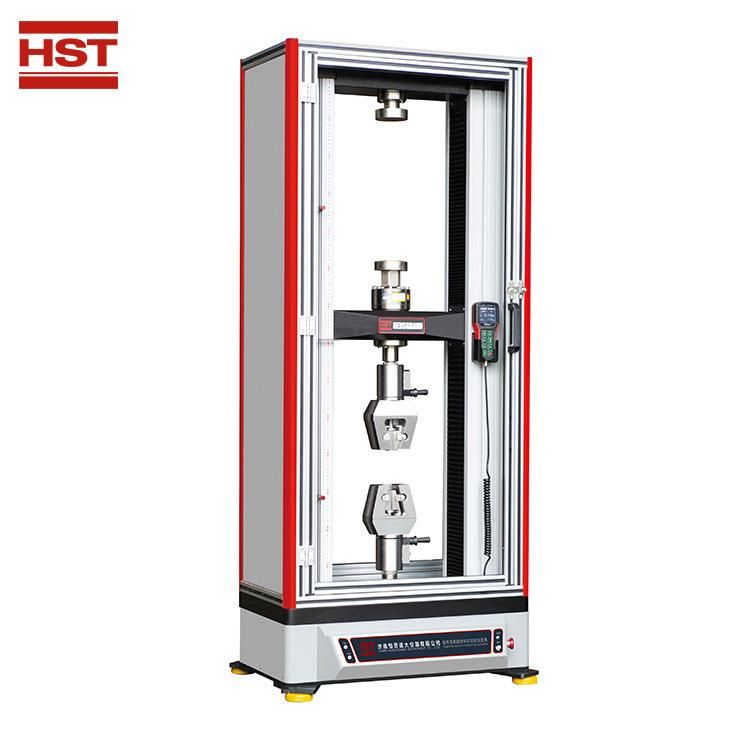

30Ton tensile test lab report equipment for mild steel/aluminum/composite materials
1.Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.2.Standards:ASTM, ISO, DIN, GB and other international standards.3.Specifications:

Model	WDS-100/200/300
Max. Load(kN)	100/200/300
Structure	Four-column floor or desk model, (upper is compression and lower is tensile)
Cover	All aluminum alloy
Control method	Single chip control
Load accuracy	ISO 7500,Class1
Load range	2%~100%F·S
Displacement resolution	0.04um
Test speed(mm/min)	0.05-500
Tensile space(mm)	700(can be customized)
Compression space(mm)	700(can be customized)
Test width(mm)	550(can be customized)
Workbench thickness(mm)	68
Base height(mm)	460
Power supply	AC220V±10%,50Hz(can be customized)
