• Model NO.：WDW-30
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Delivery Time：10 Days After Get Payment
• Transport Package：Standard Export Packing
• Specification：700*450*1775mm
• Trademark：HST or OEM
• Origin：Jinan, Shandong
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-30 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position No Delivery Time 10 Days After Get Payment Transport Package Standard Export Packing Specification 700*450*1775mm Trademark HST or OEM Origin Jinan, Shandong HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

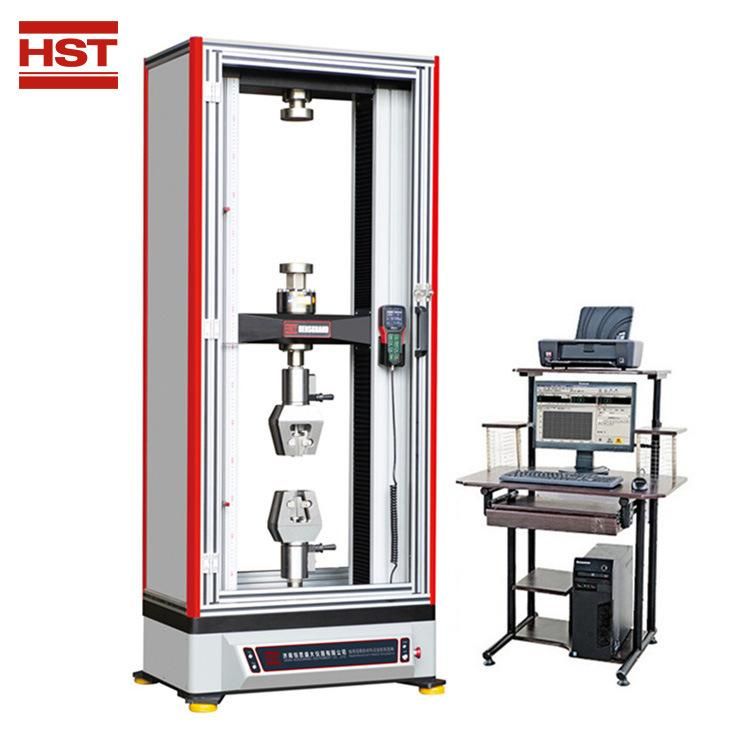

30kn Computerized Electronic carbon fiber composites Tensile Universal Testing Machine


1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-30
Max. Load	30KN
Structure	Four-column Floor Model (Upper Is Tensile And Lower Is Compression)
Control Method	Computer Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Resolution	1/300000
Measuring Range Of Deformation	2%~100%
Accuracy Indication Of Deformation	≤±1%
Disp. Indicating Relative Error	≤±1%
Displacement Resolution	0.04um
Adjusting Range Of Control Rate Of Load	0.005~5%FS/S
Adjusting Range Of Displacement Rate	0.05~500mm/min (Can be customized)
Tensile Space	700mm (Can be customized)
Compression Space	700mm (Can be customized)
Effective Spacing	400mm (Can be customized)
