• Model NO.：YJS-1000
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC 380V ,22V
• Oil Cylinder Position：Under
• Color：Gray, White , Blue,Green or Customized
• Pressure Plate：1000*1000mm or Customized
• Max Test Force：1000kn
• Test Force Accuracy：1%
• Loading Speed：0.1~25kn,S
• Piston Stroke：350mm
• Deformation Resolution：0.01mm
• Deformation Test Range：0-20mm
• Warranty：12 Months
• Certificate：Ce ISO
• Transport Package：Standard Sea Shipping Case
• Trademark：HST or OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. YJS-1000 Control Manual Control Weight 500-1000Kg Power Source AC 380V /22V Oil Cylinder Position Under Color Gray/ White / Blue/Green or Customized Pressure Plate 1000*1000mm or Customized Max Test Force 1000kn Test Force Accuracy 1% Loading Speed 0.1~25kn/S Piston Stroke 350mm Deformation Resolution 0.01mm Deformation Test Range 0-20mm Warranty 12 Months Certificate Ce ISO Transport Package Standard Sea Shipping Case Trademark HST or OEM Origin China HS Code 9024800000 Production Capacity 500 Sets/Month

Product Description

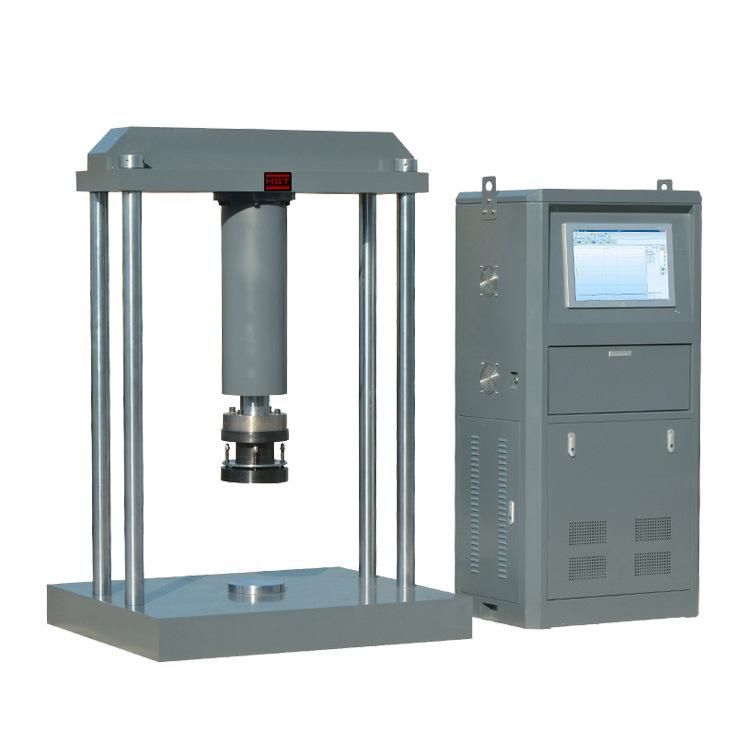

Digital Display Manhole Cover Pressure Testing Machine



1. Application:
The machine according to CJ/T3012-1993 cast iron manhole cover, CJ/T121-2000 regenerated resin composite material manhole cover and JC889-2001 "steel fiber concrete manhole cover, GB/T 23857-2009 the manhole cover industries or national standard design and production, BS EN 124:1994 ,is used for the bearing capacity of the manhole cover test.The structure performance completely conform to the requirements of the test specification.Note: HT materials do destructive test sample; QT samples or other composite material circulation, deformation, destruction test.

Simple operation, test security and stability
Sensor test force, automatic data collection
When the test is completed, digital meter display test results
Automatically calculate and print test results


2. Specifications :

Model	YJS-1000  TEL: 8615098778967
Max test force	1000KN
Effective test space	1000mm×1000mm or customized
Working bench height	500mm
Test force accuracy	≤±1%
Loading speed	0.1~25KN/s (computer control or manual speed regulating)
Piston stroke	350mm
Deformation test range	0-20mm
Deformation resolution	0.01mm
Overload point	Over 3% full scale, automatic unloading
Loading indicate accuracy	0.1KN
Loading method	Electric hydraulic
Load control mode	computer control and manual variable adjust speed, with automatic programming.
Load media	68 # anti-wear hydraulic oil
Motor power	1.5KW
Power source	380V or 220V
Machine size(L*W*H)	1800mm×1600mm×1600mm
Machine weight	3000Kg


3. Main features :
1) The host adopt high rigidity structure, which can guarantee the safety in the process of the test .
2) Load cylinder up-setting type , working bench height 500 mm, easy to take put and down the covers specimen .
3) The rigid block and piston end are connected by knuckle ball, ensure the reaction plate and manhole cover is entirely contact , guarantee the authenticity of the bearing capacity can be measured .
4) Cylinder and piston sealed with special material , high sealing, low friction and long use life.
5) Adopt professional testing machine oil pump motor group, low noise and long use life .
6) Adopt super refined oil filter ,ensure the inside oil system clean ,so as to guarantee execution control long-term work element
7) LCD digital meter display, real-time display of the current force, peak value during the test information

4. Main configuration:
1. 1000KN main unit----1 set (include: cylinder piston, rigid block,displacement meter,force sensor)
2. oil source control----1 set (include: motor oil pump, oil filter, several oil tube .
3. Digital Control display table (built-in micro printer)----1 set
4. Instruction manual, certificate of quality, warranty card, packing list----1 suit
