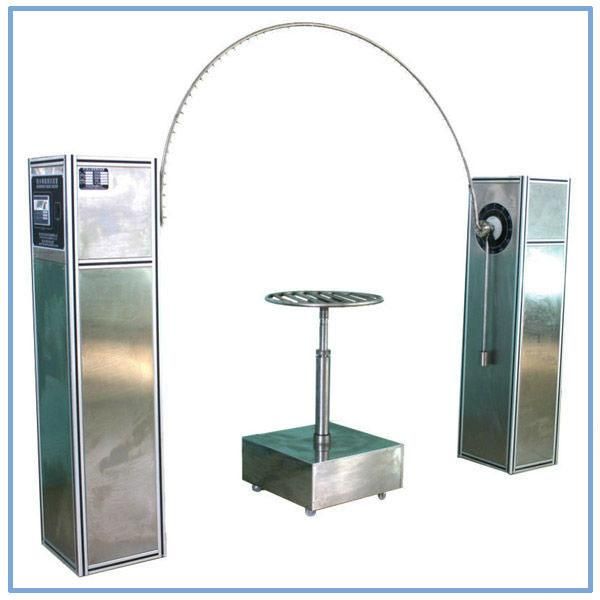

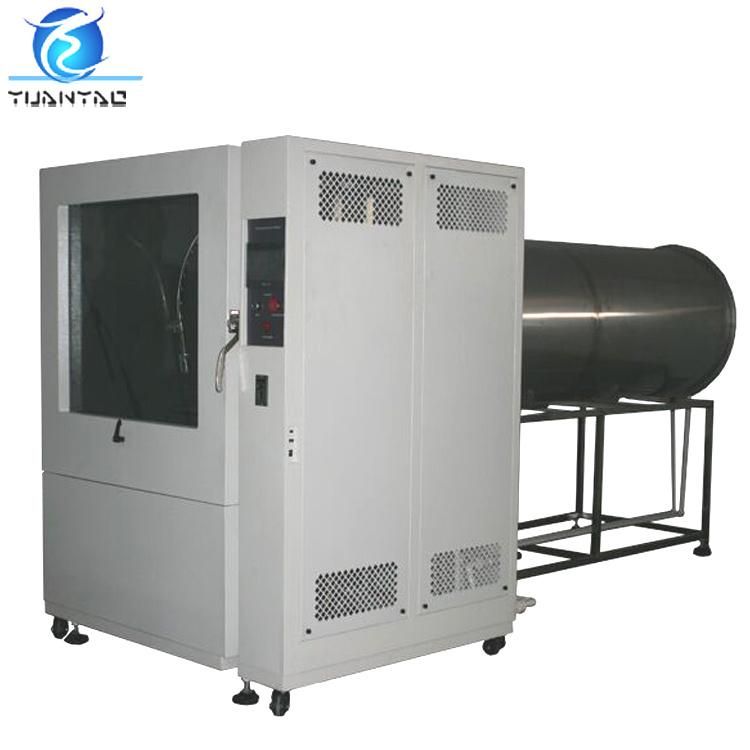

Ipx3/Ipx4 Water Spray Test Equipment
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：N,a
Base Info
- Loading Method：N,a
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：N,a
- Internal Size(mm)：1200*1200*1200
- IP Class：Ipx1~Ipx8
- Flow Rate of The Water：1.8L,Min
- Test Specimen Frame：1rpm
- Water Temp.：Normal
- Material：SUS#304
- Warranty：12 Months
- Other Components：Chamber Lamp.Wiper, Casters with Adjusters
- Standards：IEC60529
- Service：Customization
- Transport Package：Strong Wooden Case

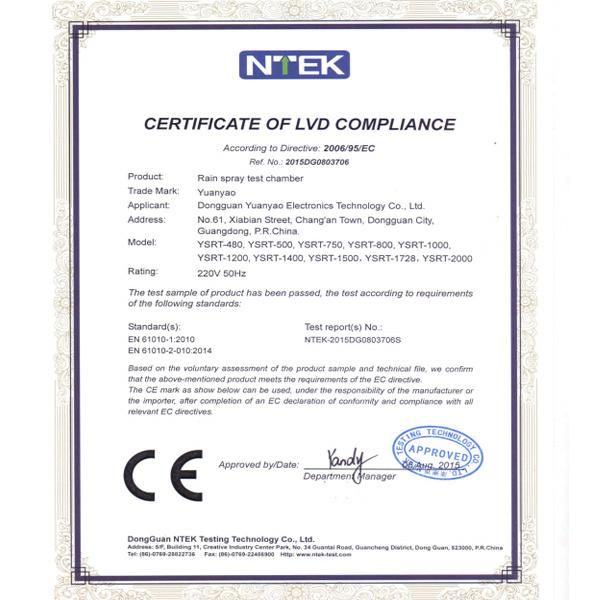

- Specification：CECertificate
- Trademark：Yuanyao Privilege Rain Spray Test Chamber
- Origin：Guangdong, China(Mainland)
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description
ModelYSRT-1728-A YSRT-1728-E(IEC-529)(CNS14165) Internal Dim.W×H×D(mm) 1200×1200×1200 1200×1200×1200 External Dim.W×H×D(mm) 1750×1850×1300 1750×1850×1300 Water Temp. Normal Normal Spray Type Total Water Flow(L/min) R1 1.8 IP×1 With in 1~1.5mm/min(In drip box) R2 3.2 IP×2 With in 3~3.5mm/min(In drip box) S1 24.5 IP×3 angle±600,R:400mm,1.1L/min S2 39.2 IP×4 angle±1800,R:400mm,1.8L/min Pressure of spray nozzle(kgf/cm*2) R1 0.1 1.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16Number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25Number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only) R2 0.3 S1 1 S2 3 (RPM)Test Specimen Frame 17RMP 1RPM Spray Nozzle Rotation Speed 23RPM Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one time Material Interior SUS#304 Exterior Other Components Chamber lamp.Wiper
casters with Adjusters Chamber lamp.Wiper,casters with Adjusters Power Source(K.W.) AC 1Ψ 220V 60/50Hz 4KW

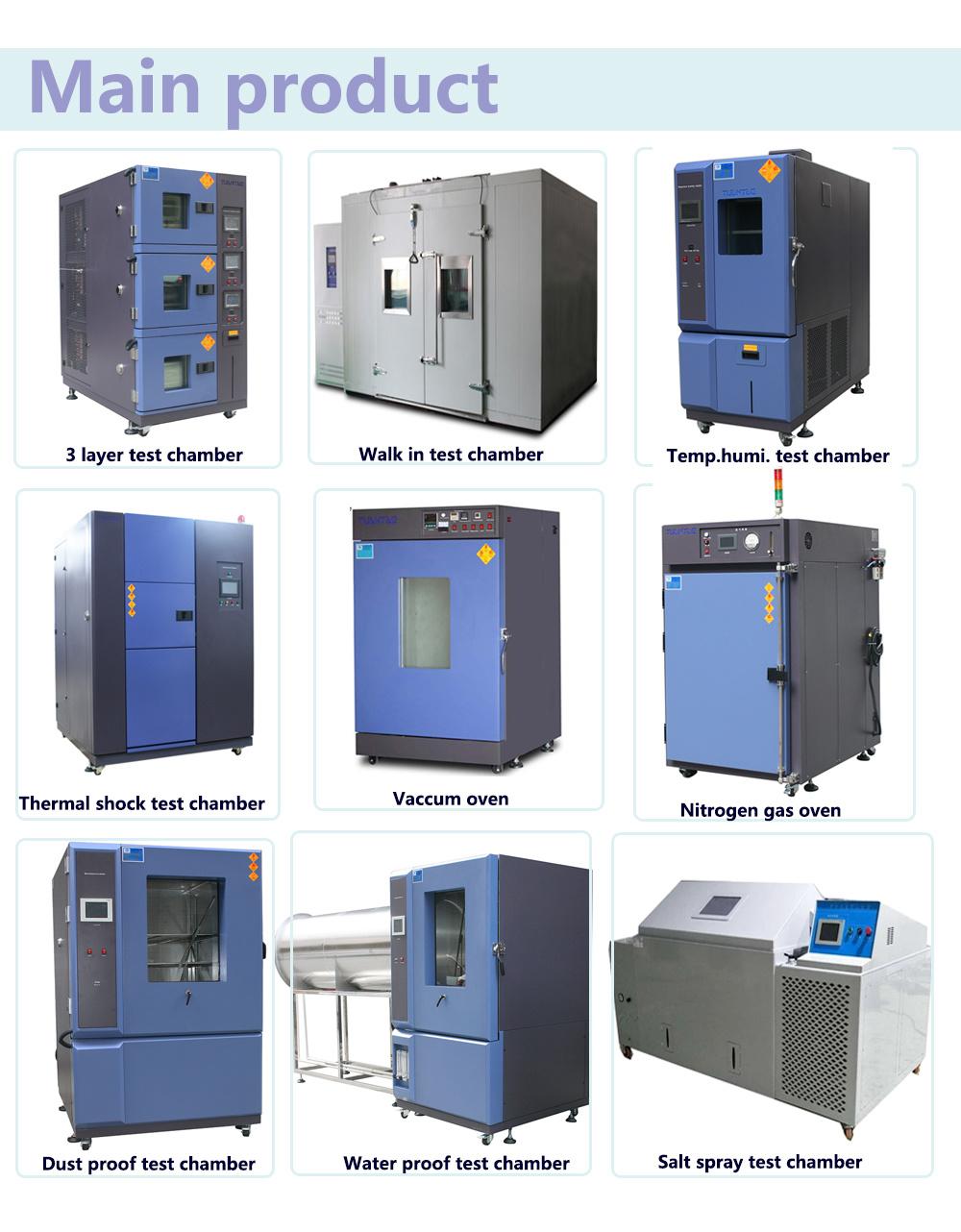

Except rain spray test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
If you are interested in the items, please contact me soon.
