• Model NO.：YSRT-1728-A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Inner Size(W*H*D)：1200*1200*1200mm
• Exterior Size(W*H*D)：1750*1850*1300mm
• Water Temperature：Normal
• Total Waterflow(L/Min)：3.2(R2)
• Pressure of Spray Nozzle(Kgf/Cm*Cm)：0.07L,Min
• Test Specimen Frame(Rpm)：17rpm
• Spray Nozzle Rotation Spees：23rpm
• Material：SUS#304
• Other Compents：Chamber Lamp.Wiper Casters with Adjusters
• Customization：Alailable
• Transport Package：Strong Wood Carton
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9031200000
• Production Capacity：10sets,Month

ModelYSRT-1728-AYSRT-1728-E(IEC-529)(CNS14165)Internal Dim.W×H×D(mm)1200×1200×12001200×1200×1200External Dim.W×H×D(mm)1750×1850×13001750×1850×1300Water Temp.NormalNormalSpray TypeTotal Water Flow(L/min)R11.8IP×1With in 1~1.5mm/min(In drip box)R23.2IP×2With in 3~3.5mm/min(In drip box)S124.5IP×3angle±600,R:400mm,1.1L/minS239.2IP×4angle±1800,R:400mm,1.8L/minPressure of spray nozzle(kgf/cm*2)R10.11.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16Number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25Number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only)R20.3S11S23(RPM)Test Specimen Frame17RMP1RPMSpray Nozzle Rotation Speed23RPMPromote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one timeMaterialInteriorSUS#304ExteriorOther ComponentsChamber lamp.Wiper
casters with AdjustersChamber lamp.Wiper,casters with AdjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz 4KW

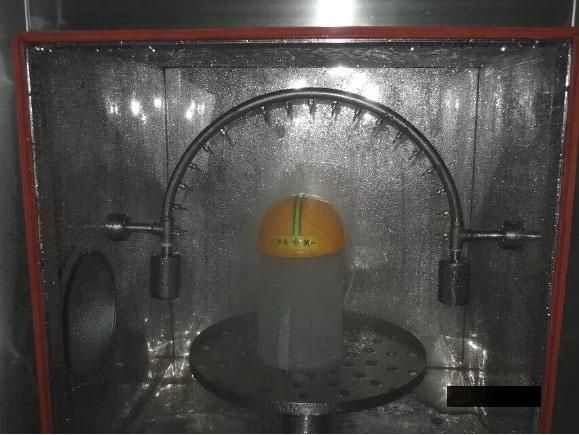

Product detail






Except Rain Spray Test Chamber, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal

Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test

equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
