• Model NO.：HD-F754
• Display：LCD
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Test Results：Automatic Calculate
• Delivery Time：15 Days After Receive The Deposit
• Drop Height：460mm(GB); 500mm(ASTM) Accuray 0.5%
• Ball Diameter：10mm
• Accuracy：<1.5%
• Specimen Size：(L* W*H)100 *100*50mm
• Model：HD-F754
• Usage：Foam Resilience Strength Tester
• Stander：ASTM
• Transport Package：Strong Plywood Case
• Specification：ASTM, ISO
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-F754 Display LCD Control Computer Control Weight 100-500Kg Power Source AC220V Test Results Automatic Calculate Delivery Time 15 Days After Receive The Deposit Drop Height 460mm(GB); 500mm(ASTM) Accuray 0.5% Ball Diameter 10mm Accuracy <1.5% Specimen Size (L* W*H)100 *100*50mm Model HD-F754 Usage Foam Resilience Strength Tester Stander ASTM Transport Package Strong Plywood Case Specification ASTM, ISO Trademark Haida Origin Dongguan, China HS Code 9024 Production Capacity 150 Sets Per Month

Product Description

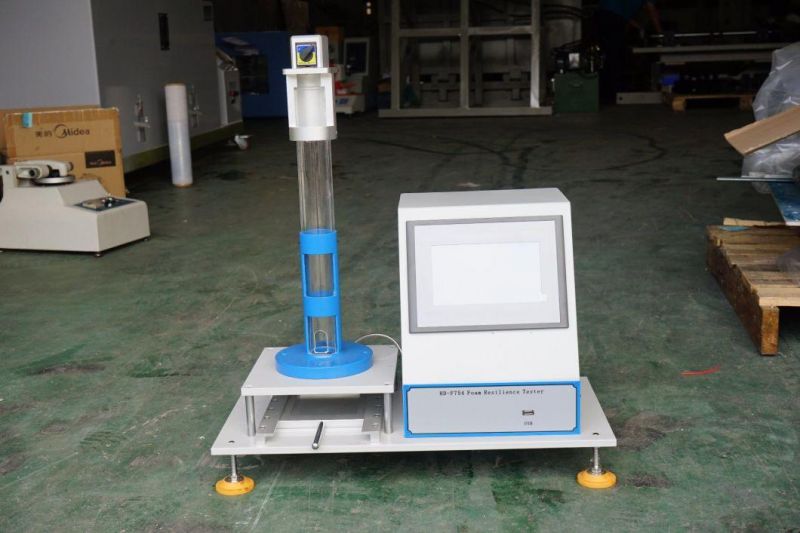

               Electronic Foam Rebound Resilience Test Instrument (HD-F769)
Introduction:

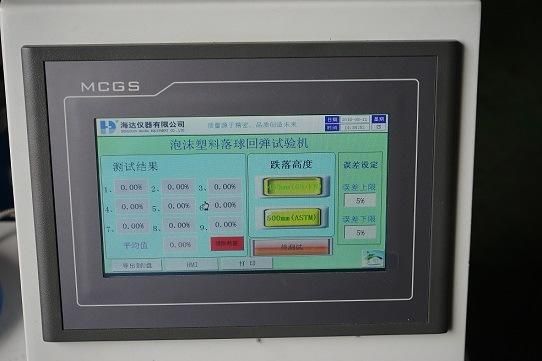

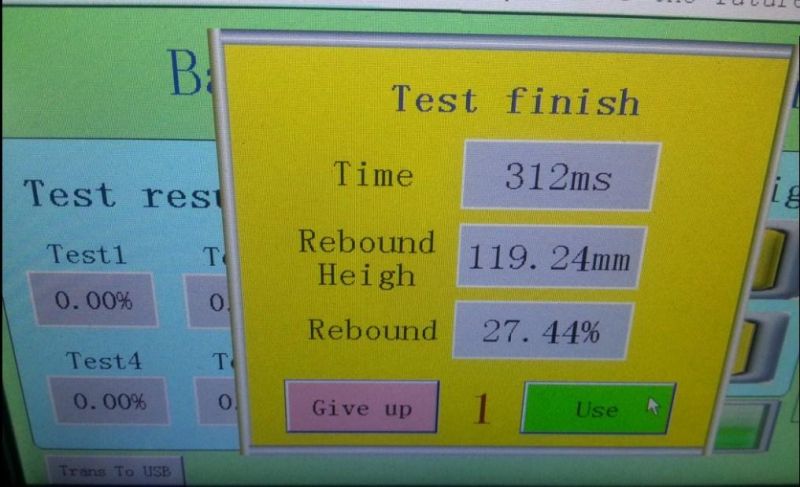

Foam Resilience Test Machine is design according to GB/T 6670-2008, correspond with ASTM D 3574 and ISO 8307, also Japan SES E3296 test standard. It through specify diameter and mass ball fall on the foam specimen from certain height, calculate the percentage between maximum drop height and rebound height, indicate foam resilience by spring rate. It uses a microprocessor to control, LCD display, print the test data.

Specification:

Items	Specifications
Ball drop distance	GB/T6670:460+0.5%mm ISO 8307 ,ASTM D3574:500mm
Steel ball diameter	Φ16-0.1 mm
Steel Ball Weight	16.7g
Rate accuracy	<1.5%
Specimen size	100 mm×100 mm×50mm
Power	1∮,AC220V/50HZ

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Standard:
GB/T6670,ISO8307,QB/T1952.1,ASTM D3574

Images:

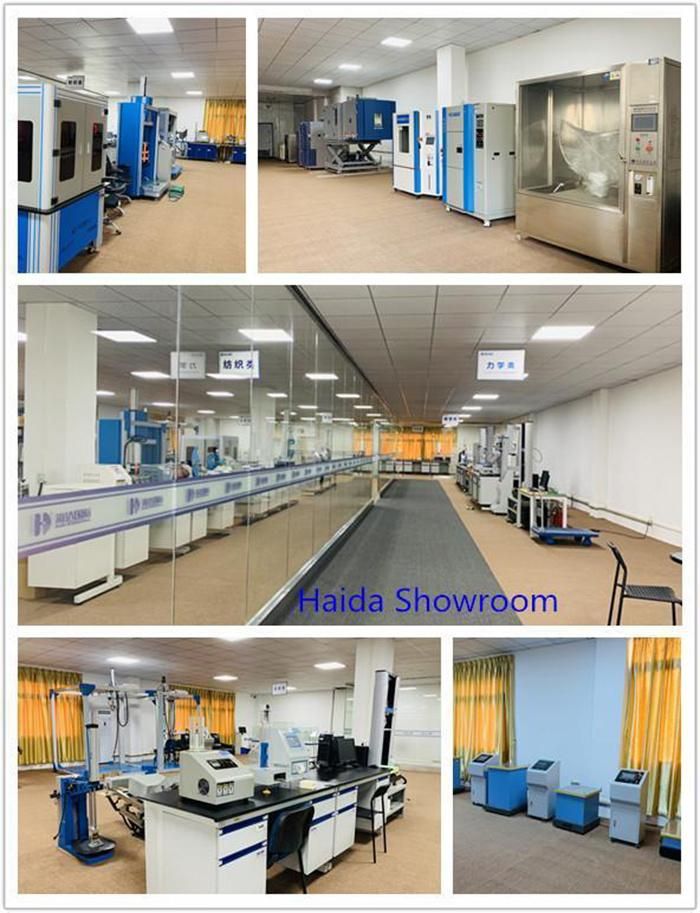

Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.



Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
